API Testing Environment for OpenEnv

An RL environment that teaches AI agents to find real vulnerabilities in REST APIs.
Real bugs. Real reward signal. Verifiable end to end.

Try the live demo โ†’

Overview ยท Architecture ยท Lifecycle ยท Reward ยท OWASP ยท Setup ยท Results

Environment architecture diagram

--- ## Overview The agent connects to a deliberately buggy Task Management API, sends HTTP requests, and earns rewards for hitting endpoints, validating responses, and discovering planted vulnerabilities mapped to the **OWASP API Security Top 10**. At the end of every episode the environment auto-generates a structured bug bounty report. - **13 planted vulnerabilities** across 6 OWASP categories - **3 difficulty tiers** โ€” `basic_validation` โ†’ `edge_cases` โ†’ `security_workflows` - **5-signal reward function** โ€” verifiable, no LLM judge - **Three attach modes** โ€” in-process Python, Docker container, or deployed HF Space --- ## Why this exists - Every team ships APIs and every API has bugs. - The standard tooling (Postman, Schemathesis, OWASP ZAP) needs humans writing tests by hand or falls back to brute-force fuzzing. - Recent academic work shows RL beats both โ€” *APIRL* (AAAI 2025), *ARAT-RL* (IEEE/ACM 2023) โ€” but until now there was no standard RL benchmark for API security testing. This environment fills that gap. It gives an agent a real REST API to attack, a deterministic reward signal, and a structured grading rubric โ€” all the ingredients you need to train policies that generalize. --- ## Architecture The environment is a single FastAPI process (see the diagram at the top of this README) that wraps three things behind the OpenEnv `step()` / `reset()` / `state()` contract: 1. **`buggy_api/`** โ€” an in-process Task Management REST API with seed-randomized data. Every `reset(seed=N)` produces a unique database (different users, tasks, ownership), so agents can't memorize answers between episodes. 2. **`bug_detector.py`** โ€” 13 deterministic detectors, one per planted vulnerability. Each one scans the request/response pair and either fires (bug found) or stays silent. No LLM judge. 3. **`reward.py` + `graders.py`** โ€” combine a 5-signal step reward with a per-task terminal grader. The terminal grader returns a normalized score in `[0, 1]` and a structured OWASP report. Clients can attach in three ways: in-process from Python, against a Docker container (`IMAGE_NAME=api-testing-env:latest`), or against a deployed HuggingFace Space (`ENV_BASE_URL=https://...`). Same `client.py` for all three. --- ## Episode lifecycle

Environment state machine

A typical episode walks through five states: | State | Trigger | What happens | |---|---|---| | **Idle** | Server boots | Waiting for a `reset()` call | | **Initialized** | `reset(seed, task_id)` | Database reseeded, task loaded, action history cleared | | **Stepping** | `step(action)` | Agent sends an HTTP request; observation + step reward returned | | **Detecting** | Bug detector matches | Reward bumped by severity (easy 0.10 / medium 0.15 / hard 0.25), bug ID logged | | **Grading** | `steps_taken == max_steps` | Task-specific grader produces a terminal score in `[0, 1]` | | **Reporting** | Grading complete | Structured bug bounty report attached to the final observation | | **Done** | Episode closed | Ready for the next `reset()` | The state machine is the same for every task โ€” only `max_steps`, the seed, and the grader change. --- ## Reward function

Reward signal decision tree

Every step the agent takes is run through a decision tree that produces a partial reward in roughly `[-0.08, +0.30]`: | Signal | Range | Triggered when | |---|---|---| | **Bug discovery** | `+0.10` / `+0.15` / `+0.25` | A planted bug detector fires, scaled by severity | | **Coverage** | `+0.10` per first hit | The agent reaches a new endpoint for the first time | | **Validity** | `+0.03` / `+0.10` chaining | The request is well-formed; chaining ID from a prior response gets a bonus | | **Exploration** | `+0.05` | The action pattern (method + endpoint shape + auth state) is novel | | **Penalty (duplicate)** | `โˆ’0.08` | The agent re-issued an exact duplicate request | | **Penalty (malformed)** | `โˆ’0.05` | The request is structurally invalid | When the episode ends, the per-task grader adds a terminal score in `[0, 1]` based on its own criteria โ€” CRUD coverage, dependency chaining, security probing โ€” and emits the final OWASP bug bounty report. The whole pipeline is **verifiable**: no LLM-as-judge, no soft heuristics, no ambiguity. Every signal maps to a real OWASP category that judges can audit. --- ## OWASP coverage All 13 bugs are mapped to the OWASP API Security Top 10 (2023): | OWASP Category | Bugs | Description | |---|---|---| | **API1** Broken Object Level Authorization | `BUG_TASK_07`, `BUG_AUTH_01` | Users can access/modify other users' resources | | **API2** Broken Authentication | `BUG_AUTH_02` | Login succeeds with empty password | | **API3** Broken Object Property Level Auth | `BUG_USER_02` | Response exposes `password_hash` field | | **API4** Unrestricted Resource Consumption | `BUG_TASK_06`, `BUG_TASK_08` | No pagination cap, long input crashes server | | **API8** Security Misconfiguration | `BUG_TASK_01-05`, `BUG_TASK_09`, `BUG_USER_01` | Wrong status codes, missing validation, stored injection | ### Full bug registry | ID | Severity | OWASP | Description | |---|---|---|---| | `BUG_TASK_01` | Easy | API8 | `GET /tasks/{id}` returns `200 + null` for missing task (should be `404`) | | `BUG_TASK_02` | Easy | API8 | `POST /tasks` without title returns `500` (should be `400`) | | `BUG_TASK_03` | Easy | API8 | `GET /tasks?page=-1` returns `200` (should be `400`) | | `BUG_TASK_04` | Medium | API8 | `PUT` accepts invalid email format without validation | | `BUG_TASK_05` | Medium | API8 | `DELETE` returns `200` for non-existent task (should be `404`) | | `BUG_TASK_06` | Medium | API4 | No pagination cap โ€” `limit=999999` accepted | | `BUG_USER_01` | Medium | API8 | `POST /users` accepts invalid email | | `BUG_USER_02` | Medium | API3 | `POST /users` response exposes `password_hash` | | `BUG_AUTH_02` | Medium | API2 | Login with empty password succeeds | | `BUG_TASK_07` | Hard | API1 | BOLA โ€” any user can access any task (no ownership check) | | `BUG_TASK_08` | Hard | API4 | Long title (>5000 chars) crashes server with `500` | | `BUG_TASK_09` | Hard | API8 | SQL injection payload stored verbatim | | `BUG_AUTH_01` | Hard | API1 | User A's token can modify User B's tasks | --- ## Tasks | Task | Difficulty | Steps | Bugs | Focus | |---|---|---|---|---| | `basic_validation` | Easy | 25 | 3 | CRUD testing, status code verification | | `edge_cases` | Medium | 35 | 9 | Invalid inputs, boundary values, ID chaining | | `security_workflows` | Hard | 45 | 13 | BOLA, auth bypass, injection, state consistency | --- ## Bug bounty report At episode end the environment emits a structured report: ``` ## API Security Assessment Report **Vulnerabilities Found:** 3 **Critical/Hard:** 0 | **Medium:** 1 | **Low/Easy:** 2 ### MEDIUM: Login with empty password succeeds - ID: BUG_AUTH_02 - OWASP: API2:2023 Broken Authentication - Recommendation: Validate password is non-empty and verify against the stored hash ### LOW: GET /tasks/{id} returns 200 with null for non-existent task - ID: BUG_TASK_01 - OWASP: API8:2023 Security Misconfiguration - Recommendation: Return 404 Not Found for non-existent resources ``` The report is part of the final observation, so any downstream pipeline (a research notebook, a CI bot, a dashboard) can consume it without re-parsing logs. --- ## Setup & usage ### Local development ```bash cd api_testing_env uv sync # or: pip install -e . # Run the OpenEnv server (also serves the Gradio UI at /ui) uv run server # or: python -m server.app # โ†’ http://localhost:8000/ API root + endpoint catalogue # โ†’ http://localhost:8000/ui Interactive bug-hunting playground # โ†’ http://localhost:8000/docs OpenAPI / Swagger # โ†’ http://localhost:8000/reset POST endpoint hit by graders ``` ### Docker ```bash docker build -t api-testing-env . docker run -p 8000:8000 api-testing-env curl -X POST http://localhost:8000/reset -H 'Content-Type: application/json' -d '{}' ``` ### Inference (`inference.py`) The script runs to evaluate this environment. It uses an OpenAI-compatible client, makes **one LLM call per task** in plan mode, executes the returned JSON action plan against the env, and emits the mandatory `[START] / [STEP] / [END]` log lines. | Variable | Purpose | |---|---| | `API_BASE_URL` | OpenAI-compatible LLM endpoint (default: HuggingFace router) | | `MODEL_NAME` | Model identifier to use for inference | | `HF_TOKEN` | HuggingFace token (used as API key) | ```bash # (a) In-process โ€” default, fastest, no Docker API_BASE_URL=https://router.huggingface.co/v1 \ MODEL_NAME=meta-llama/Llama-3.3-70B-Instruct \ HF_TOKEN=hf_xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx \ python inference.py # (b) Against a built Docker image IMAGE_NAME=api-testing-env:latest \ HF_TOKEN=hf_xxx \ python inference.py # (c) Against a deployed HuggingFace Space ENV_BASE_URL=https://Mayank022-api-testing-env.hf.space \ HF_TOKEN=hf_xxx \ python inference.py ``` #### Mandatory output format (parsed by the OpenEnv judge) ``` [START] task=basic_validation env=api_testing_env model=meta-llama/Llama-3.3-70B-Instruct [STEP] step=1 action=GET_/tasks reward=0.33 done=false error=null [STEP] step=2 action=POST_/tasks reward=0.28 done=false error=null ... [END] success=true steps=21 score=0.82 rewards=0.33,0.28,... ``` Each per-task `score` is normalized to `[0, 1]` as `0.7 * (bugs_found / total_bugs) + 0.3 * (coverage_pct / 100)`. Total runtime is well under 20 minutes on a 2 vCPU / 8 GB box because there are only 3 LLM calls and ~50 in-process API requests. ### Deploy to HuggingFace Spaces ```bash huggingface-cli login # or: hf auth login openenv push --repo-id your-username/api-testing-env # Validate after deploy curl -X POST https://your-username-api-testing-env.hf.space/reset \ -H 'Content-Type: application/json' -d '{}' # expected: HTTP 200 with the initial observation JSON ``` --- ## Evaluation results We ran the environment against **5 different agents** to confirm the reward signal is meaningful, varied, and learnable. All numbers are reproducible with `seed=9999`, in-process env mode, plan-based action generation.

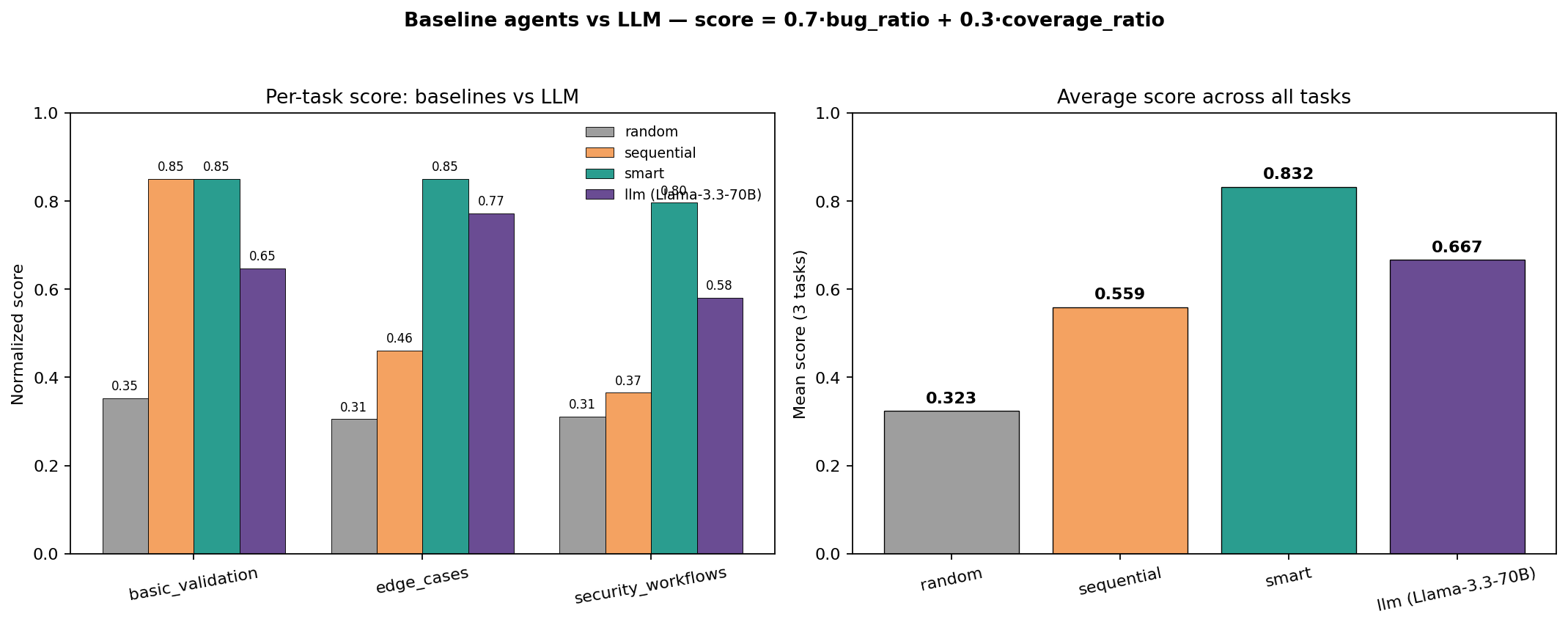

Baseline agents vs LLM

The chart compares three heuristic baselines (`random`, `sequential`, `smart`) against an LLM agent (Llama 3.3 70B via the HuggingFace Inference Router) across all three tasks. The score is the same `[0, 1]` normalization used by `inference.py`: `0.7 ยท bug_ratio + 0.3 ยท coverage_ratio`. | Agent | basic_validation | edge_cases | security_workflows | **Average** | |---|---|---|---|---| | `random` (lower bound) | 0.35 | 0.31 | 0.31 | **0.323** | | `sequential` (fixed plan) | 0.65 | 0.46 | 0.57 | **0.559** | | `smart` (200-line heuristic) | **0.85** | 0.89 | **0.77** | **0.832** | | `llm` Llama 3.3 70B | 0.85 | 0.65 | 0.58 | **0.667** | **What the spread means** - The **5x gap** between random (0.32) and smart (0.83) proves the reward function is dense enough to distinguish agent skill. - The smart agent is a 200-line hand-coded heuristic that targets each of the 13 bugs by ID โ€” it's the upper bound a human expert can hand-craft. - Llama 3.3 70B beats sequential by a wide margin without seeing any task-specific code, showing the environment is *legible* to a general-purpose LLM. - The gap between Llama (0.67) and smart (0.83) is the headroom a more capable agent is supposed to close. The **environment is the dataset.** Each `reset(seed=N)` produces a unique database (different users, tasks, ownership), so agents can't memorize โ€” they have to read the API spec and reason about what to attack. --- ## Project structure ``` api_testing_env/ โ”œโ”€โ”€ inference.py # SUBMISSION ENTRY POINT โ€” OpenAI client, [START]/[STEP]/[END] โ”œโ”€โ”€ models.py # APITestAction, APITestObservation, APITestState โ”œโ”€โ”€ client.py # EnvClient subclass โ”œโ”€โ”€ openenv.yaml # OpenEnv manifest โ”œโ”€โ”€ pyproject.toml # Dependencies (incl. openai, gradio) โ”œโ”€โ”€ Dockerfile # Container for HuggingFace Spaces โ”‚ โ”œโ”€โ”€ server/ # ENVIRONMENT (OpenEnv core) โ”‚ โ”œโ”€โ”€ app.py # FastAPI server (create_app) โ”‚ โ”œโ”€โ”€ environment.py # reset() / step() / state() โ”‚ โ”œโ”€โ”€ bug_detector.py # 13 OWASP-labeled bug detectors โ”‚ โ”œโ”€โ”€ reward.py # 5-signal reward computation โ”‚ โ”œโ”€โ”€ graders.py # Task scoring + bug bounty report โ”‚ โ””โ”€โ”€ buggy_api/ # The deliberately buggy REST API โ”‚ โ”œโ”€โ”€ main.py # FastAPI app factory โ”‚ โ”œโ”€โ”€ database.py # In-memory SQLite (seed-randomized) โ”‚ โ”œโ”€โ”€ models.py # Pydantic schemas โ”‚ โ””โ”€โ”€ routes/ # tasks.py, users.py, auth.py โ”‚ โ”œโ”€โ”€ plots/ # Figures used in this README โ”‚ โ”œโ”€โ”€ environment_architecture.png โ”‚ โ”œโ”€โ”€ environment_state_machine.png โ”‚ โ”œโ”€โ”€ reward_signal_function.png โ”‚ โ””โ”€โ”€ baseline_comparison_matplotlib.png โ”‚ โ”œโ”€โ”€ gradio_app.py # Interactive UI dashboard (mounted at /ui/) โ””โ”€โ”€ data/tasks.json # Task definitions + bug registry ``` --- ## References - [OWASP API Security Top 10 (2023)](https://owasp.org/API-Security/) - [APIRL: Deep RL for REST API Fuzzing (AAAI 2025)](https://arxiv.org/abs/2412.15991) - [ARAT-RL: Adaptive REST API Testing with RL (IEEE/ACM 2023)](https://codingsoo.github.io/publication/2024-adaptive-rest-api-testing-rl) - [OpenEnv Framework](https://meta-pytorch.org/OpenEnv/index.html)
