# Medscribe AI Backend
[](https://fastapi.tiangolo.com/)
[](https://www.python.org/)
[](https://www.docker.com/)
[](https://huggingface.co/spaces/zeyadcode/medscribe-backend)
This repository contains the audio transcription backend for Medscribe AI, an AI medical scribe that records doctor-patient conversations, transcribes them, and generates structured follow-up summaries.
The backend is a Dockerized FastAPI service hosted on Hugging Face Spaces. It accepts audio uploads, improves audio quality with a denoising and normalization pipeline, sends the processed audio to Groq Whisper, and returns a typed JSON transcription response to the Next.js frontend.
Demo Video: [YouTube walkthrough](https://youtu.be/qco3Urdr8m8)
## Related Links
- Backend Space: [huggingface.co/spaces/zeyadcode/medscribe-backend](https://huggingface.co/spaces/zeyadcode/medscribe-backend)
- Production API: [zeyadcode-medscribe-backend.hf.space](https://zeyadcode-medscribe-backend.hf.space)
- Frontend App: [medscribe-ai-lilac.vercel.app/dashboard](https://medscribe-ai-lilac.vercel.app/dashboard)
- Frontend Repository: [zeyad-shaban/medscribe-ai-frontend](https://github.com/zeyad-shaban/medscribe-ai-frontend)
- Backend Repository: [zeyad-shaban/medscribe-ai-backend](https://github.com/zeyad-shaban/medscribe-ai-backend)
- Demo Video: [YouTube walkthrough](https://youtu.be/qco3Urdr8m8)
## Screenshots
Add backend screenshots or diagrams to `docs/assets/` using these filenames. The README is already wired to render them once the files are added.

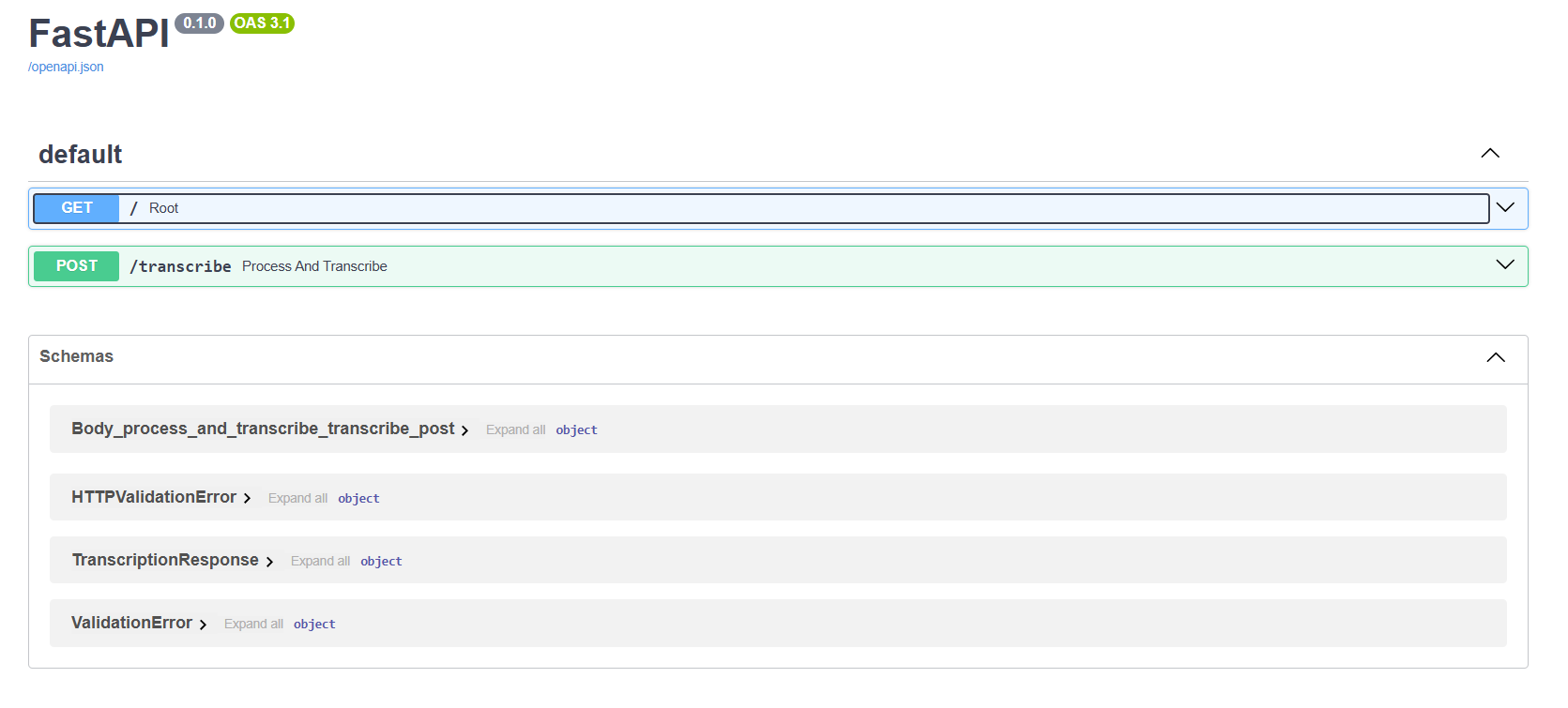

| API Docs | Hugging Face Space |
| --- | --- |
|  |  |
| Audio Pipeline | CI/CD |
| --- | --- |
|  |  |
## What It Does
- Exposes a FastAPI `/transcribe` endpoint for audio upload.
- Loads uploaded audio with `librosa`.
- Applies DeepFilterNet denoising before transcription.
- Normalizes RMS level and protects against clipping.
- Resamples audio to 16 kHz for the Groq transcription API.
- Sends cleaned audio to `whisper-large-v3-turbo` through Groq.
- Returns a Pydantic-validated JSON response with transcript text, filename, and duration.
- Runs as a Docker container on Hugging Face Spaces.
- Uses GitHub Actions to sync the repository to Hugging Face Hub after pushes to `main`.
## Engineering Highlights
- Production-style API boundary between the web app and transcription service.
- Audio preprocessing pipeline designed to improve transcription quality before calling the speech-to-text model.
- Containerized deployment with a Hugging Face-compatible Dockerfile and port configuration.
- Typed response schema with Pydantic for predictable frontend integration.
- CI/CD workflow that pushes backend updates from GitHub to Hugging Face Hub.
- Built as part of a solo full-stack AI project covering frontend, backend, AI orchestration, deployment, and infrastructure.
## Architecture
```mermaid
flowchart LR
Frontend[Next.js Frontend] --> Upload[POST /transcribe]
Upload --> FastAPI[FastAPI Service]
FastAPI --> Decode[librosa Audio Decode]
Decode --> Denoise[DeepFilterNet Denoising]
Denoise --> Normalize[RMS and Peak Normalization]
Normalize --> Resample[Resample to 16 kHz]
Resample --> Groq[Groq Whisper large-v3-turbo]
Groq --> Response[Pydantic TranscriptionResponse]
Response --> Frontend
```
## Tech Stack
| Area | Technology |
| --- | --- |
| API framework | FastAPI |
| Runtime | Python 3.10 |
| Data validation | Pydantic |
| Audio loading/resampling | librosa, scipy |
| Audio denoising | DeepFilterNet |
| ML/audio runtime | PyTorch, torchaudio |
| Speech-to-text | Groq Whisper `whisper-large-v3-turbo` |
| Deployment | Docker on Hugging Face Spaces |
| CI/CD | GitHub Actions, `huggingface/hub-sync` |
## API Reference
### Health Check
```http
GET /
```
Response:
```json
{
"status": "ok"
}
```
### Transcribe Audio
```http
POST /transcribe
Content-Type: multipart/form-data
```
Form field:
| Name | Type | Description |
| --- | --- | --- |
| `file` | audio file | Audio conversation file to clean and transcribe. |
Example response:
```json
{
"transcript": "Patient reported...",
"filename": "consultation.wav",
"duration_seconds": 42.7
}
```
## Local Development
### Prerequisites
- Python 3.10
- ffmpeg
- Groq API key
### Setup
```bash
python -m venv .venv
.venv\Scripts\activate
pip install -r requirements.txt
uvicorn app:app --reload --host 127.0.0.1 --port 8000
```
On macOS/Linux, activate the virtual environment with:
```bash
source .venv/bin/activate
```
Create `.env.local`:
```bash
GROQ_SECRET_KEY=
```
Open [http://127.0.0.1:8000/docs](http://127.0.0.1:8000/docs) to test the FastAPI endpoint.
## Docker
Build and run locally:
```bash
docker build -t medscribe-ai-backend .
docker run --env-file .env.local -p 7860:7860 medscribe-ai-backend
```
The container listens on port `7860`, which is the expected port for Hugging Face Spaces Docker apps.
## CI/CD
The repository includes a GitHub Actions workflow at `.github/workflows/sync-to-hub.yml`.
On every push to `main`, the workflow:
1. Checks out the repository.
2. Enables Git LFS support.
3. Pushes the backend code to the Hugging Face Space using `huggingface/hub-sync`.
Required GitHub secret:
```bash
HF_TOKEN=
```
## Project Structure
```text
.
app.py
Dockerfile
requirements.txt
config/
constants.py
settings.py
schemas/
transcription.py
utils/
audio_cleaning.py
notebooks/
eda.ipynb
deepfilternet_demo.ipynb
.github/
workflows/
sync-to-hub.yml
```
## Roadmap
- Add speaker separation before or after transcription.
- Add automated tests before syncing to Hugging Face.
- Host more AI model logic directly on Hugging Face.
- Add automatic model switching and fallback behavior during API spikes.
- Expand observability around transcription latency and failure modes.
## Clinical Safety Scope
Medscribe AI is built as an AI-assisted documentation workflow. The backend provides transcription support for clinician review and should not be treated as a medical device or official medical record system by itself.
