alvdansen/h3-keyframe-animation

H3 Keyframe Animation Adapters

Three LoRA adapters that teach MiniMax H3 to move a drawing the way a hand-drawn animator moves it — a consistent cadence held across styles, rather than the drift between vector interpolation, digital easing, and limited animation that the base model slides through unprompted.

Companion to the paper Animating on Twos (Carlson & Bielec, Alvdansen Labs, August 2026).

---

The three adapters

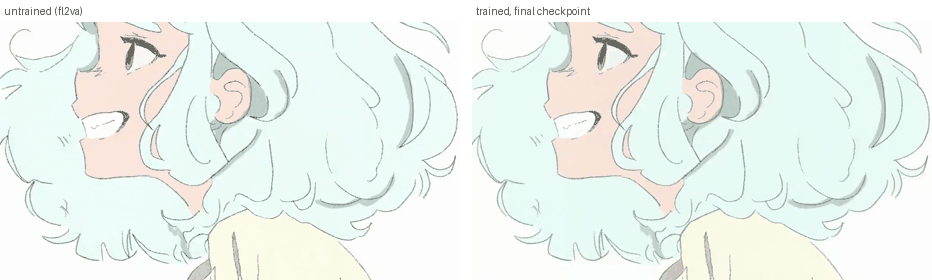

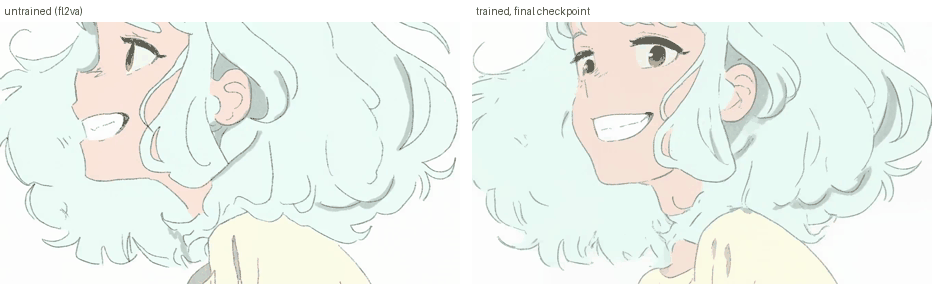

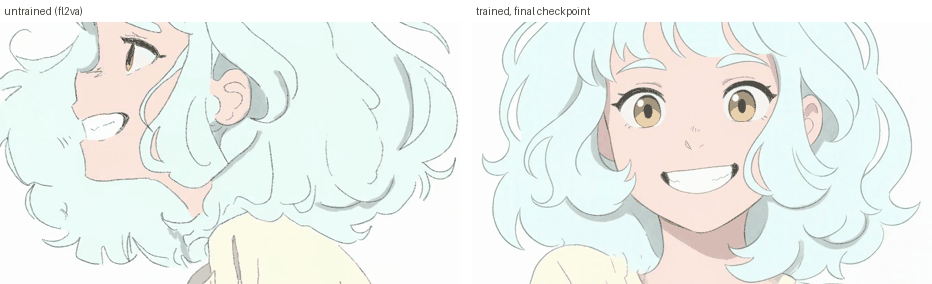

Same architecture, same training schedule. What separates them is the conditioning contract: how many reference drawings each takes, and what the distance between those drawings is asked to mean. In every clip below, the left half is the untrained baseline and the right half is the adapter at step 12,000 — same inputs, same seed.

hero — 1 reference

Draw the natural next hero key.

Conditioned on the current hero key, and nothing else. There is deliberately no second reference: where the action goes next is the question being asked, so showing the model a destination would be showing it the answer.

tween — 2 references

Draw the next inbetween, advancing the motion one small step.

Conditioned on a rolling current frame plus the beat's distant end extreme, held fixed for the whole chain. That far reference is context, not a target — it tells the next inbetween which way to lean. Chain it by feeding each result back as the near reference while the far one never moves.

sequence — 2 references

Surface a short, self-contained held sequence.

Conditioned on the window's first drawing and the window's own natural end. Unlike the other two, this adapter is not teaching the model a new mapping — hand-drawn held animation already exists somewhere in the base distribution, and its job is to surface that more consistently. It converges early and changes little across late checkpoints.

---

Quick start

A ready-to-load ComfyUI graph, the reference it runs on, and the prompt that drives it.

File
workflows/h3_seq_r2v.json	The graph. Drag it onto the ComfyUI canvas.
examples/quickstart/reference.png	The single reference drawing it conditions on.
examples/quickstart/prompt.txt	The caption, in the dialect below.

Put the reference in ComfyUI/input/ and the adapter in ComfyUI/models/loras/, then load the graph. It is laid out in labelled stages — models, references, prompt, sampling — and carries its own notes on the settings that matter.

The graph ships configured for one reference (the second image slot is bypassed), which is the hero contract. For tween or sequence, un-bypass the second LoadImage and swap the adapter in the LoraLoaderModelOnly node.

---

⚠ Load the converted files

These adapters were trained against the diffusers module tree, which exposes separate to_q / to_k / to_v projections. MiniMax H3 serves a single fused qkv_proj.

A raw PEFT adapter loaded against H3 matches zero keys, does nothing, and warns about nothing. You get a clean render that the adapter never touched.

The .safetensors files in this repo are already converted — 400 tensors, 100 qkv_proj keys, no to_q/to_k/to_v — so load them as they are. If you convert another checkpoint yourself, use the included h3_lora_to_comfy.py and check the result by confirming its key names contain qkv_proj.

---

⚠ Not on Turbo variants

Run these on the full H3 model, not a Turbo or otherwise step-distilled repack of it.

These adapters exist to hold a hand-drawn line and a deliberate cadence, and the step-distilled variants do not preserve the linework. Whatever you gain in speed you lose in exactly the thing the adapters were trained to protect.

Thanks to @shadowworksltd for raising this.

---

Contents

File	What it is
adapters/h3_hero_step12000.safetensors	hero adapter, final checkpoint, converted
adapters/h3_tween_step12000.safetensors	tween adapter, final checkpoint, converted
adapters/h3_seq_step12000.safetensors	sequence adapter, final checkpoint, converted
h3_lora_to_comfy.py	Raw PEFT → fused-QKV converter
examples/	A small number of renders, selected by the author
LICENSE, NOTICE	Terms, and the base-model obligations we cannot waive

Each adapter is rank 64 / alpha 64, F32, ~1.88 GB, trained for 12,000 steps.

---

The conditioning contract

Adapter	The act it supports	Conditioning	What the second reference's distance means
hero	Draw the natural next hero key	1 reference, the current hero key	No second reference. Where the action goes next is the question being asked; showing the model a destination would be showing it the answer.
tween	Draw the next inbetween, advancing the motion one small step	2 references: a rolling current frame, plus the beat's distant end extreme, held fixed for the whole chain	Far, deliberately. The end extreme provides context: it tells the next inbetween which way to lean, without being the thing to interpolate to.
sequence	Surface a short, self-contained held sequence already latent in the model	2 references: the window's first drawing and the window's own natural end	One window to fill: a complete keyframed clip on twos.

hero and tween teach the model a mapping it does not reliably have. sequence works differently — hand-drawn-looking held animation already exists somewhere in the base distribution, and that adapter's job is to surface it more consistently. Expect sequence to converge early and change little across late checkpoints, where a teaching adapter keeps moving.

All three drive the reference-conditioning path (N soft reference images), not the first/last-frame path (hard endpoints).

---

Inference settings

These are the settings that produced the paper's figures, read out of the render code rather than recommended in the abstract. Everything not listed here is a ComfyUI default.

	hero	tween	sequence
Base checkpoint	minimax_h3_ref2va_int8_convrot (unpruned, not Turbo)	same	same
Conditioning node	MiniMaxH3ReferenceToVideo	same	same
References	1	2	2
Reference keys	ref_images.ref_image_0	…_0, …_1	…_0, …_1
ref_image_size	max	max	max
LoRA loader	LoraLoaderModelOnly	same	same
LoRA strength	1.0	1.0	1.0
Sampler / scheduler	euler / simple	same	same
Steps	30–100	30–100	30–100
Guidance	none — BasicGuider, no CFG input exists	same	same
Sigma shift	video 12.0, audio 3.0	same	same
Denoise	1.0	1.0	1.0
Resolution	1344 × 768	same	same
Frames	22	22	22
Seed (paper figures)	42	42	7
Output	24 fps	same	same
Text encoder	qwen3vl_32b_minimax_h3_int8_convrot, CLIPLoader type minimax	same	same
Video / audio VAE	..._video_vae_fp16 / ..._audio_vae_fp32, untiled	same	same

Notes that matter more than the numbers:

• Strength 1.0 is the trained strength. Rank and alpha are both 64, so the applied scale is exactly 1.0. Do not walk it back at inference.
• The adapters were trained against the unpruned reference partition, which is what the settings above record. They also run on pruned repacks.
• The LoRA goes on the model only. LoraLoaderModelOnly, not LoraLoader — the Qwen3-VL text encoder takes no LoRA.
• There is no negative prompt, and no CFG scale to set. The checkpoints are CFG-distilled; the graph has no negative input at all.
• Steps run 30–100. The figures in the paper were sampled lower than that (25 for hero and tween, 50 for sequence) because those matched the training-time sample config — a sampling choice for the review grid, not a recommendation.
• Legal clip lengths follow frames = 17n + 5, so the shortest legal clip is 5. Every render above is 22 (n = 1), which for sequence is 11 drawings held two frames each. Note that hero and tween were trained on a 5-frame uniform freeze but rendered at 22 — the cache-encode length and the render length are different numbers and conflating them is a documented crash.

---

The caption dialect

The caption is the inference interface. These are the portable shapes; fill the angle brackets.

hero / early tween — three sections.

Create the next keyframe in the sequence. SCENE: <framing + subject-type + medium + props>. MOVEMENT: <what moves, how, where it lands>. STATIC: <what holds, ending with framing + ground>.

hero's MOVEMENT carries a full arc — start-state, path, end-state — because the model must bridge a whole beat.

tween — five sections.

… SCENE: … FIRST FRAME: <pose in the near reference>. TARGET END FRAME: <pose in the far reference, phrased as a destination, never comparative>. MOVEMENT: <one step only>, landing <progress>. STATIC: <what holds, ending with framing + ground>.

The trailing landing <progress> clause is the step-size lever, drawn from a fixed vocabulary (fractional advances, plus hold / anticipation / overshoot / arrival). TARGET END FRAME must never use comparative language ("unchanged", "still the same") — the rolling reference changes under it at inference while it stays fixed, so any comparison goes stale.

sequence — alignment line first.

Picture 1 aligns with the 0.00-second mark of the target video; Picture 2 aligns with the <computed>-second mark. Subject: <medium + subject-type + ground>, animated on twos. Action: <motion path in beat order, held drawings changing on a rhythm>. Camera: <angle/move + the reason for it>. Preserve: <every axis that must not drift>, and the on-twos rhythm.

Put "on twos" in Subject and honour it in Action.

How the training captions were written

These describe the dialect the adapters were captioned in, so you can match it. They are conventions from the training data, not tested constraints.

• No negations. The checkpoints are CFG-distilled, so there is no negative branch and every token is positive. Captions state the desired condition rather than excluding an unwanted one.
• No character, show, or franchise names. Identity comes in through the reference image; captions describe subject-type, medium, motion, and framing in general terms.
• The medium string is byte-identical across a shot, drawn from a small fixed set — clean line on white, flat black-and-white animatic, flat cel colour on white.
• Camera carries a reason clause, e.g. "a low three-quarter angle, so the silhouette stays readable", rather than a bare angle.
• Preserve names each axis that should not drift.
• Craft vocabulary appears where it is literally true of the clip — drag, settle, follow-through, anticipation, weight shift, leading edge, and on twos, which is used when the clip genuinely holds each drawing two frames.

---

License

The adapters are released under the H3 Keyframe Animation Adapter License 1.0.0 (see LICENSE) — a PolyForm Small Business derivative. Source-available, not open source.

Free, with no need to ask, for individuals at any income (personal, creative, freelance, educational), researchers and educational institutions, nonprofits and charities, and organizations that with their affiliates earned under USD 2,000,000 gross revenue last fiscal year and have raised under USD 2,000,000 in total capital. Crossing either threshold means a commercial license, with a 90-day grace period — past use is not retroactively a violation. Contact minta@promptcrafted.com.

The base model's license binds you directly

These adapters do nothing without MiniMax H3, which we do not own and cannot sublicense. You must obtain and accept your own grant from MiniMax. Any access this project's authors have is personal to them and does not transfer. That license carries obligations we cannot waive, including Excluded Territories — which as read include the European Union, the United Kingdom, the Republic of Korea, and the United States — an attribution requirement on commercial products, a revenue threshold independent of ours, and a prohibition on using outputs to train other models. Read it in full. NOTICE has the detail.

The paper text and figures are CC BY 4.0 and the paper repo's code is MIT — a different, more permissive scheme than the one covering these weights.

---

Citation

@article{carlson2026animating,
  title   = {Animating on Twos: Training Keyframe-Animation Adapters on a Pretrained Video Model},
  author  = {Carlson, Minta and Bielec, Timothy},
  year    = {2026},
  month   = {August},
  journal = {Alvdansen Labs},
  url     = {https://alvdansen.github.io/animating-on-twos/}
}
