H2LooP Spark CPT (Preview): First Domain-Specialized Autocomplete Model Checkpoint for Embedded Software

H2LooP Spark is the first base model purpose-built for general embedded software auto-complete, created through continual pre-training (CPT) of OLMo-3-1025-7B. We are releasing an early checkpoint of this training run as an open-source artifact.

By curating specialized datasets spanning over 100 billion tokens of embedded systems code, datasheets, user manuals and other documentation - and training on a carefully selected 23 billion token subset - this 7B model achieves domain capabilities that exceed SOTA Claude Opus 4.6 and significantly outperforms capable mid-size models like Qwen3-Coder-30B-A3B on embedded code completion.

Paper: H2LooP Spark Preview: Continual Pretraining of Large Language Models for Low-Level Embedded Systems Code — Singh et al., 2026. Full details on training methodology, dataset construction (SpecMap), infrastructure, and evaluation.

Key Results

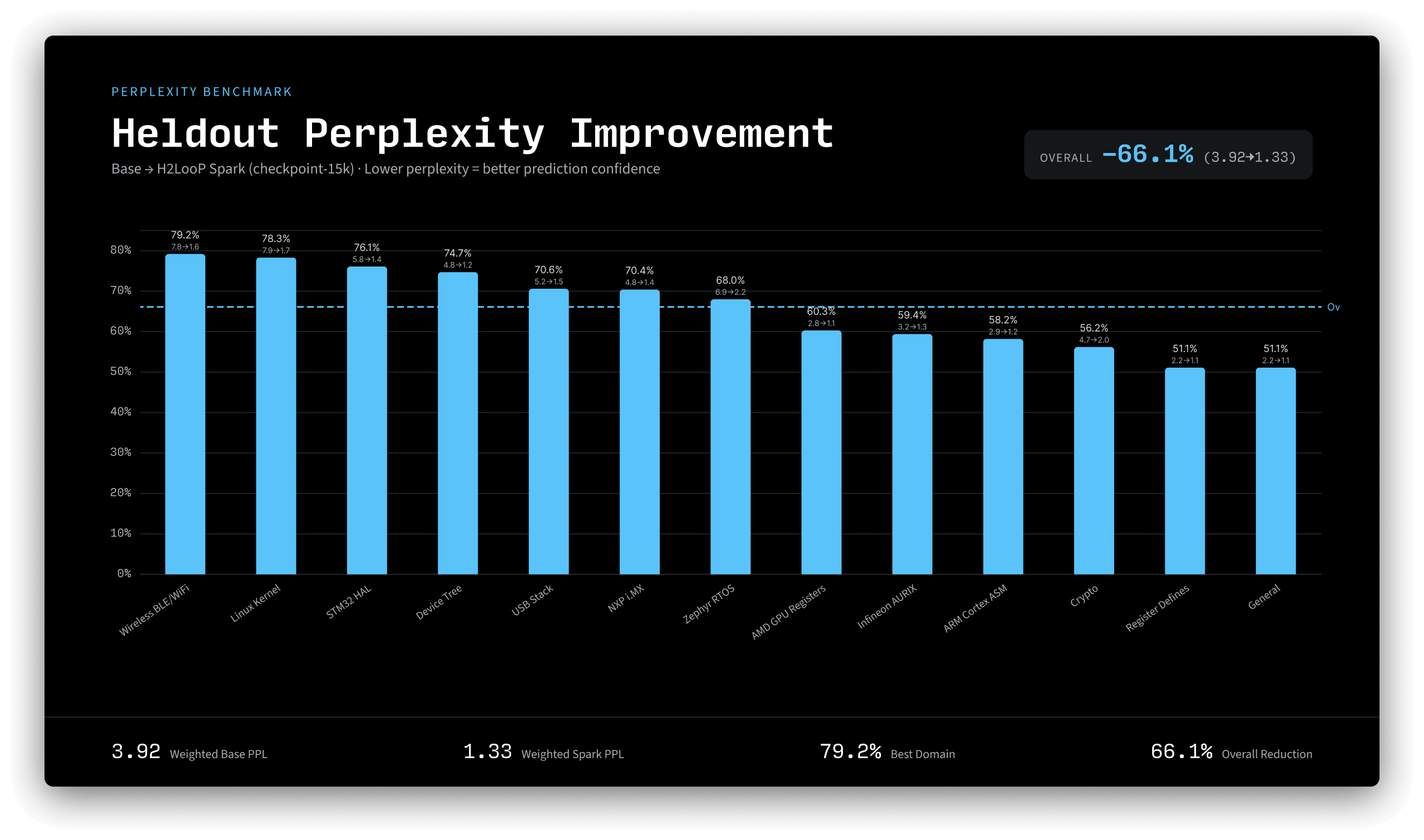

Perplexity: 66% Reduction on Held-Out Embedded Code

We measured perplexity on held-out code from 9 public repositories not seen during training (Linux kernel, Zephyr RTOS, STM32 HAL, CMSIS, wolfSSL, mbedTLS, TinyUSB, NXP MCUXpresso SDK, Infineon AURIX) across 13 embedded-systems categories.

	Base OLMo-7B	H2LooP Spark
Held-out PPL	3.92	1.33 (-66.1%)
In-domain PPL	4.06	1.20 (-70.4%)

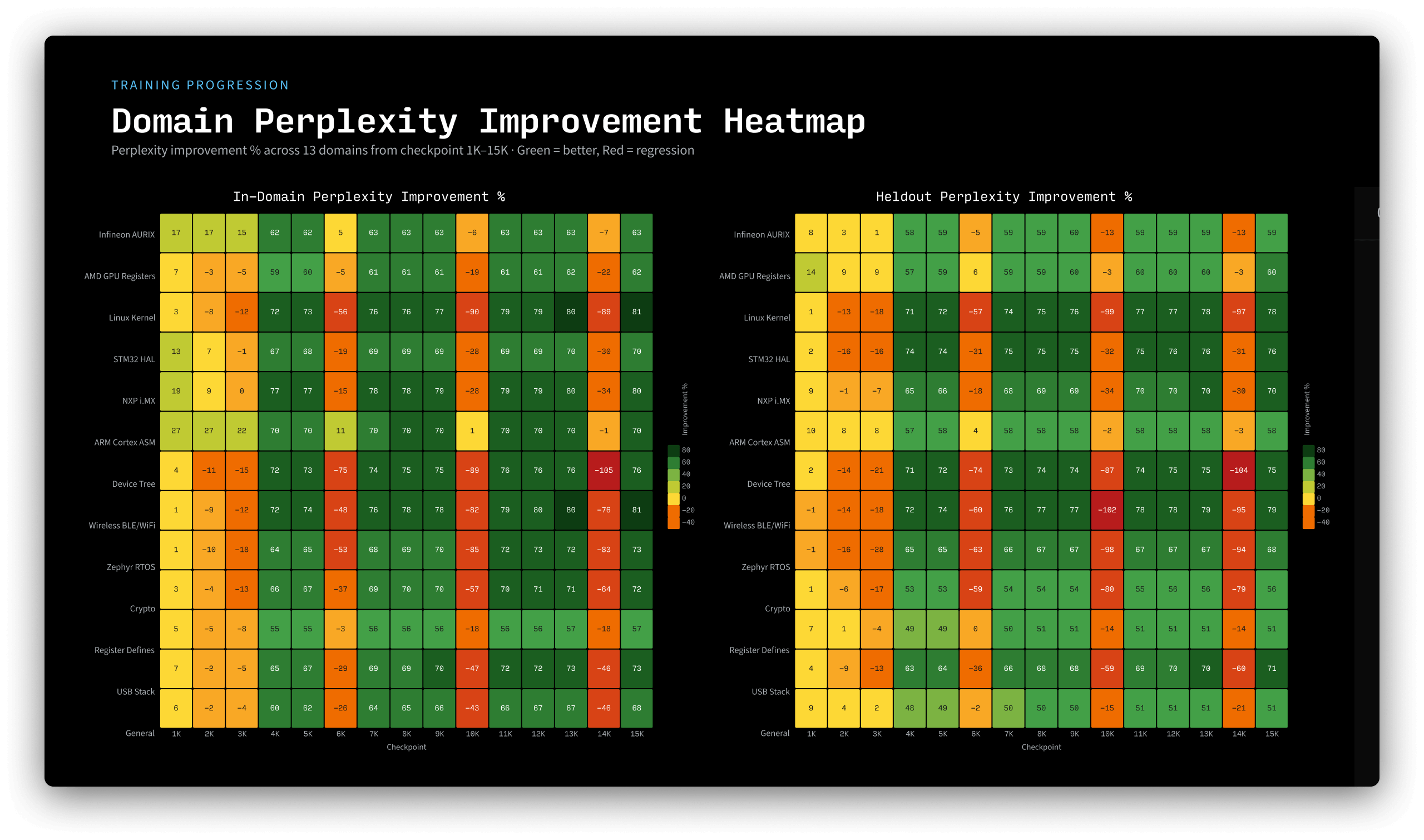

Perplexity improvements are consistent across all 13 categories, from register defines (-51%) to wireless/BLE stacks (-79%).

Token Accuracy: A 7B Model Outperforming Frontier Models

Models compared:

Base OLMo-7B: allenai/OLMo-3-1025-7B (no fine-tuning)
H2LooP Spark: Best CPT checkpoint (varies by metric, typically 10k-15k)
Qwen3-Coder-30B: Qwen/Qwen3-Coder-30B-A3B-Instruct-FP8 (30B MoE, 3B active) - vLLM TP=2
Claude Opus 4.6: global.anthropic.claude-opus-4-6-v1 - Bedrock Converse API

All use greedy decoding (temp=0), same eval samples and metrics.

Overall Weighted Averages

Metric	Base OLMo-7B	H2LooP Spark	Qwen3-30B	Opus 4.6
BLEU-4	0.246	0.452	0.382	0.416
Token Accuracy	0.168	0.362	0.246	0.241
Edit Distance ↓	0.746	0.557	0.640	0.595
CF Similarity	0.625	0.755	0.715	0.736
Exact Match	3.9%	16.1%	6.6%	0.0%

Per-Category BLEU-4

Category	N	Base OLMo	H2LooP Spark	Qwen3-30B	Opus 4.6	Winner
infineon_aurix	25	0.336	0.593	0.359	0.367	H2LooP Spark
amd_gpu_registers	25	0.171	0.481	0.546	0.449	Qwen3
linux_kernel	25	0.112	0.217	0.172	0.396	Opus
stm32_hal	25	0.158	0.562	0.707	0.514	Qwen3
nxp_imx	25	0.231	0.465	0.318	0.436	H2LooP Spark
arm_cortex_asm	20	0.280	0.628	0.357	0.377	H2LooP Spark
device_tree	25	0.212	0.499	0.280	0.483	H2LooP Spark
wireless_ble_wifi	25	0.132	0.207	0.204	0.337	Opus
zephyr_rtos	20	0.096	0.160	0.189	0.216	Opus
crypto	20	0.174	0.222	0.229	0.326	Opus
register_defines	25	0.545	0.763	0.663	0.573	H2LooP Spark
usb_stack	20	0.200	0.379	0.244	0.422	Opus
general	25	0.511	0.906	0.594	0.445	H2LooP Spark

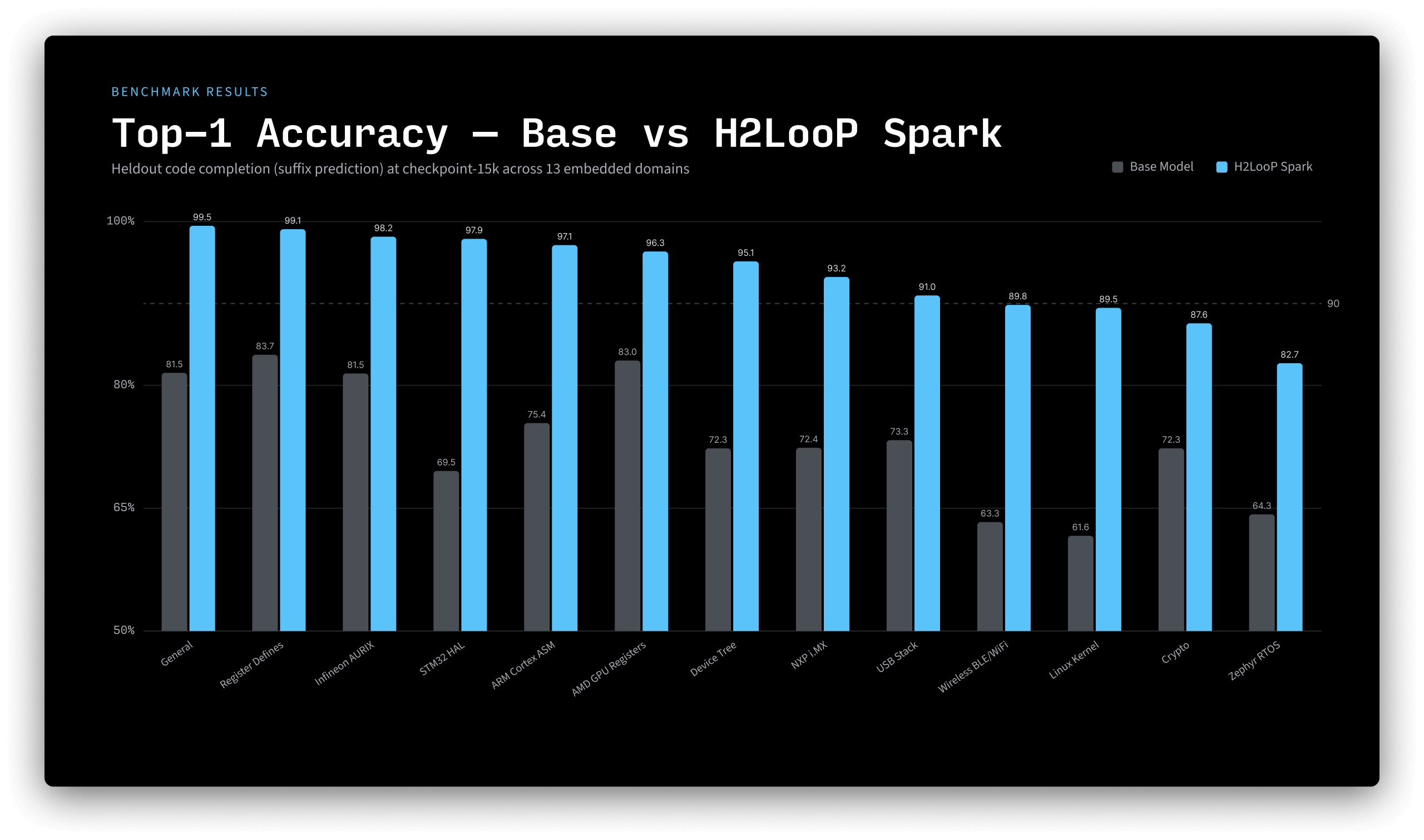

We evaluated actual token-level prediction accuracy on code completion (suffix prediction at the 75% split point) across the same 13 held-out embedded domains, comparing against Claude Opus 4.6 and Qwen3-Coder-30B-A3B.

Metric	Base OLMo-7B	H2LooP Spark	Qwen3-Coder-30B	Claude Opus 4.6
Token Accuracy	16.8%	34.1%	24.6%	24.1%

H2LooP Spark achieves +108% token accuracy over base, and leads both Opus (+42%) and Qwen (+39%) - models that are 4-50x larger.

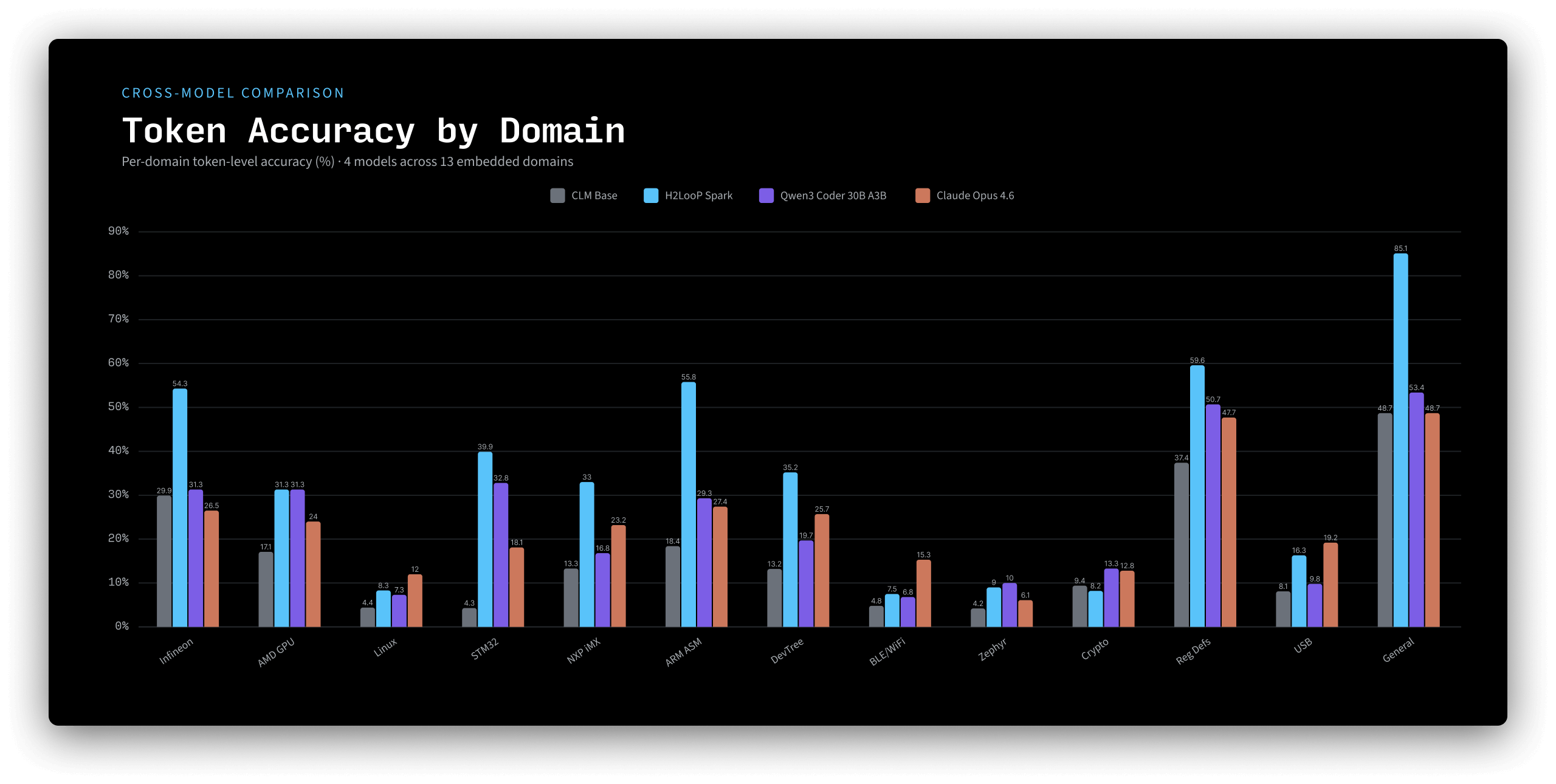

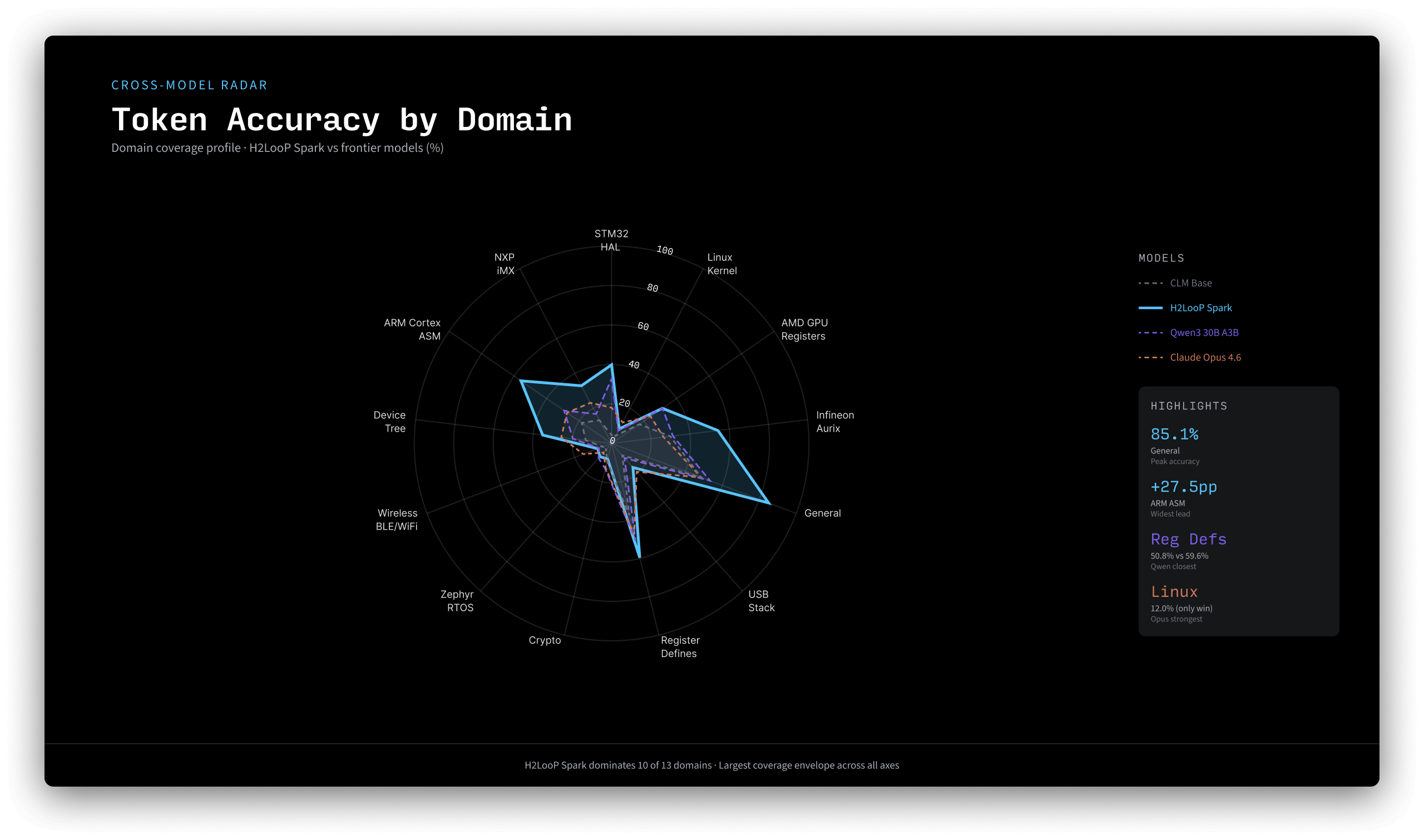

H2LooP Spark dominates 10 of 13 domains on token-level accuracy, with peak accuracy of 85.1% on general embedded code and the widest lead (+27.5pp) on ARM Cortex assembly.

Usage

vLLM (Recommended)

from vllm import LLM, SamplingParams

llm = LLM(
    model="h2loop-ai/spark-cpt-base-ckpt",
    dtype="bfloat16",
    max_model_len=2048,
    gpu_memory_utilization=0.75,
    tensor_parallel_size=1,  # use 2 for multi-GPU
)

prompt = """/*   Typedefs  */

typedef volatile union
{
    unsigned int       *ucPtr;
    unsigned int       *usPtr;
    unsigned int       *uiPtr;
    unsigned long long *ullPtr;
} Ifx_Ssw_CTablePtr;

/*   GNU Intrinsics  */
"""

params = SamplingParams(temperature=0, max_tokens=512)
outputs = llm.generate([prompt], params)
print(outputs[0].outputs[0].text)

Transformers

from transformers import AutoModelForCausalLM, AutoTokenizer
import torch

model = AutoModelForCausalLM.from_pretrained(
    "h2loop-ai/spark-cpt-base-ckpt",
    torch_dtype=torch.bfloat16,
    device_map="auto",
)
tokenizer = AutoTokenizer.from_pretrained("h2loop-ai/spark-cpt-base-ckpt")

prompt = """/*   Typedefs  */

typedef volatile union
{
    unsigned int       *ucPtr;
    unsigned int       *usPtr;
    unsigned int       *uiPtr;
    unsigned long long *ullPtr;
} Ifx_Ssw_CTablePtr;

/*   GNU Intrinsics  */
"""

inputs = tokenizer(prompt, return_tensors="pt").to(model.device)
outputs = model.generate(**inputs, max_new_tokens=512, do_sample=False)
print(tokenizer.decode(outputs[0], skip_special_tokens=True))

Training Details


Base model	allenai/OLMo-3-1025-7B
Method	Continual Pre-Training on BF16
Data preparation	Novel in-house method based on Agentic Data Preparation - maps datasheets to code symbols
Hardware	8x NVIDIA H100 80GB
Sequence length	2048 tokens
Released checkpoint	Early checkpoint (training ongoing)

Evaluation Domains

Held-out evaluation spans 13 categories from 9 public GitHub repositories not seen during training:

Category	Source Repos
Linux Kernel	torvalds/linux
STM32 HAL	STMicroelectronics/STM32CubeF4
Infineon AURIX	Infineon/AURIX_code_examples
NXP i.MX	nxp-mcuxpresso/mcux-sdk
ARM Cortex ASM	ARM-software/CMSIS_5
Zephyr RTOS	zephyrproject-rtos/zephyr
Crypto	wolfSSL/wolfssl, Mbed-TLS/mbedtls
USB Stack	hathach/tinyusb, torvalds/linux
Device Tree	torvalds/linux
Wireless BLE/WiFi	torvalds/linux
AMD GPU Registers	torvalds/linux
Register Defines	Cross-repo regex matches
General	Cross-repo

Intended Use

H2LooP Spark is designed for general embedded software development completion and with light Supervised Finetuning:

Code completion for MCU firmware, drivers, and RTOS code
Hardware register definition generation
Device tree authoring
Low-level C code continuation
Understanding vendor-specific SDK patterns and conventions

Code Completion Examples on real production repositories.

Side-by-side comparisons on held-out code where H2LooP Spark CPT (Preview) beats both Claude Opus 4.6 and Qwen3-Coder-30B. Each example shows the prefix (context), reference (ground truth), and all three model outputs. All models use greedy decoding (temp=0).

Win statistics: Across all 305 eval samples, H2LooP Spark CPT (Preview) beats both Opus and Qwen on 42% of samples (94/223 comparable pairs).

Example 1: Device Tree - USB OTG Node Completion

BLEU-4: H2LooP Spark 1.000 | Claude Opus 4.6 0.000 | Qwen3-Coder 0.000

Prefix (context given to all models):

fixed-clock";
            clock-frequency = <208000000>;
        };

        ref_312m_clk: ref_312m {
            #clock-cells = <0>;
            compatible = "fixed-clock";
            clock-frequency = <312000000>;
        };

        var_312m_clk: var_312m {
            #clock-cells = <0>;
            compatible = "fixed-clock";
            clock-frequency = <312000000>;
        };
    };

Reference (ground truth):

usbotg: usb@3f120000 {
        compatible = "snps,dwc2";
        reg = <0x3f120000 0x10000>;
        interrupts = <GIC_SPI 47 IRQ_TYPE_LEVEL_HIGH>;
        clocks = <&usb_otg_ahb_clk>;
        clock-names = "otg";
        phys = <&usbphy>;
        phy-names = "usb2-phy";
        status = "disabled";
    };

    usbphy: usb-phy@3f130000 {
        compatible = "brcm,kona-usb2-phy";
        reg = <0x3f130000 0x28>;
        #phy-cells = <0>;
        status = "disabled";
    };
};

H2LooP Spark - perfect match:

usbotg: usb@3f120000 {
        compatible = "snps,dwc2";
        reg = <0x3f120000 0x10000>;
        interrupts = <GIC_SPI 47 IRQ_TYPE_LEVEL_HIGH>;
        clocks = <&usb_otg_ahb_clk>;
        clock-names = "otg";
        phys = <&usbphy>;
        phy-names = "usb2-phy";
        status = "disabled";
    };

    usbphy: usb-phy@3f130000 {
        compatible = "brcm,kona-usb2-phy";
        reg = <0x3f130000 0x28>;
        #phy-cells = <0>;
        status = "disabled";
    };
};

Claude Opus 4.6 - hallucinated a timer node instead of USB:

    timer@35006000 {
        compatible = "brcm,kona-timer";
        reg = <0x35006000 0x1000>;
        interrupts = <GIC_SPI 7 IRQ_TYPE_LEVEL_HIGH>;
        clocks = <&hub_timer_clk>;
    };

    gpio: gpio@35003000 {
        compatible =

Qwen3-Coder-30B - hallucinated an aliases block:

    aliases {
        serial0 = &uart0;
        serial1 = &uart1;
        ...
    };

    cpus {
        #address-cells

Why H2LooP Spark wins: Device tree files follow a strict SoC-specific topology - after clock definitions, the next nodes are determined by the chip's hardware block layout. H2LooP Spark learned the exact node ordering for this Broadcom SoC (USB OTG at 0x3f120000, then USB PHY at 0x3f130000) from training on similar device tree sources. Opus and Qwen both generate syntactically valid device tree nodes but pick the wrong peripherals entirely because they lack knowledge of this specific SoC's memory map and device ordering. This is a case where domain-specific memorization of hardware layouts is essential - no amount of general code understanding can infer the correct register addresses and compatible strings.

Example 2: ARM/TriCore - Intrinsic Function Declarations

BLEU-4: H2LooP Spark 0.982 | Claude Opus 4.6 0.072 | Qwen3-Coder 0.000

Prefix:

/*   Typedefs  */

typedef volatile union
{
    unsigned int       *ucPtr;
    unsigned int       *usPtr;
    unsigned int       *uiPtr;
    unsigned long long *ullPtr;
} Ifx_Ssw_CTablePtr;

/*   GNU Intrinsics  */

Reference:

extern void Ifx_Ssw_MTCR(const unsigned int, unsigned int) __attribute__ ((intrinsic_function(0x102, 0, "mtcr")));
extern int Ifx_Ssw_MFCR(const unsigned int) __attribute__ ((intrinsic_function(0x101, 0, "mfcr")));
extern void Ifx_Ssw_NOP(void) __attribute__ ((intrinsic_function(0x103, 0, "nop")));
extern void Ifx_Ssw_DSYNC(void) __attribute__ ((intrinsic_function(0x103, 0, "dsync")));
extern void Ifx_Ssw_ISYNC(void) __attribute__ ((intrinsic_function(0x103, 0, "isync")));

H2LooP Spark - near-perfect, all 5 intrinsic declarations correct:

extern void Ifx_Ssw_MTCR(const unsigned int, unsigned int) __attribute__ ((intrinsic_function(0x102, 0, "mtcr")));
extern int Ifx_Ssw_MFCR(const unsigned int) __attribute__ ((intrinsic_function(0x101, 0, "mfcr")));
extern void Ifx_Ssw_NOP(void) __attribute__ ((intrinsic_function(0x103, 0, "nop")));
extern void Ifx_Ssw_DSYNC(void) __attribute__ ((intrinsic_function(0x103, 0, "dsync")));
extern void Ifx_Ssw_ISYNC(void) __attribute__ ((intrinsic_function(0x103, 0, "isync")));

Claude Opus 4.6 - used inline function bodies instead of extern declarations:

IFX_SSW_INLINE void Ifx_Ssw_DSYNC(void)
{
    __asm("dsync");
}
IFX_SSW_INLINE void Ifx_Ssw_ISYNC(void)
{
    __asm("isync");
}

Qwen3-Coder-30B - invented unrelated bswap macros:

#define Ifx_Ssw_Swap16(x) __builtin_bswap16(x)
#define Ifx_Ssw_Swap32(x) __builtin_bswap32(x)

Why H2LooP Spark wins: The Infineon TriCore toolchain uses a proprietary __attribute__((intrinsic_function(...))) syntax that maps C function names to specific machine opcodes. This is not standard GCC - it's a vendor-specific compiler extension with exact opcode IDs (0x101 for mfcr, 0x102 for mtcr, 0x103 for nop/dsync/isync). H2LooP Spark learned this exact declaration pattern from Infineon SDK headers in the training data. Opus recognized it's an intrinsics section but defaulted to the more common inline-assembly pattern (__asm("dsync")), which is a different implementation style. Qwen completely missed the context and generated byte-swap utilities instead. The key differentiator is knowing a rare, vendor-specific API convention that simply doesn't appear in general pretraining corpora.

Example 3: NXP i.MX - eDMA Scatter/Gather Documentation

BLEU-4: H2LooP Spark 0.924 | Claude Opus 4.6 0.001 | Qwen3-Coder 0.082

Prefix:

 * Assertion of an optional interrupt request also occurs at this time, as does a possible fetch of a new TCD from
 * memory using the scatter/gather address pointer included in the descriptor (if scatter/gather is enabled).

Reference:

 * For instance, when the time interrupt of TCD[0] happens, the TCD[1] has already been loaded into the eDMA engine.
 * As sga and sga_index are calculated based on the DLAST_SGA bitfield lies in the TCD_CSR register, the sga_index
 * in this case should be 2 (DLAST_SGA of TCD[1] stores the address of TCD[2]). Thus, the "tcdUsed" updated should be
 * (tcdUsed - 2U) which indicates the number of TCDs can be loaded in the memory pool

H2LooP Spark - continued the technical explanation correctly:

 * For instance, when the time interrupt of TCD[0] happens, the TCD[1] has already been loaded into the eDMA engine.
 * As sga and sga_index are calculated based on the DLAST_SGA bitfield lies in the TCD_CSR register, the sga_index
 * in this case should be 2 (DLAST_SGA of TCD[1] stores the address of TCD[2]). Thus, the "tcdUsed" updated should be
 * (tcdUsed - 2U) which indicates the number of the TCDs can be loaded in the memory pool

Claude Opus 4.6 - jumped to function prototypes instead of continuing documentation:

 * @param handle eDMA handle pointer.
 */
void EDMA_HandleIRQ(edma_handle_t *handle);
#if defined(__cplusplus)
}
#endif
#endif /*_FSL_EDMA_H_*/

Qwen3-Coder-30B - also jumped to API declarations:

 * @param handle eDMA handle pointer.
 */
void EDMA_HandleIRQ(edma_handle_t *handle);

Why H2LooP Spark wins: This is a documentation continuation task - the prefix is mid-paragraph in a block comment explaining eDMA scatter/gather internals. H2LooP Spark correctly continues the technical narrative about TCD pipeline timing and tcdUsed bookkeeping, including specific details like "DLAST_SGA of TCD[1] stores the address of TCD[2]" and the formula "(tcdUsed - 2U)". Both Opus and Qwen made the same mistake: they interpreted the end of the comment block as a signal to emit the next function prototype (EDMA_HandleIRQ), which is a common pattern in header files. H2LooP Spark's advantage here is understanding the specific NXP MCUXpresso SDK documentation style and knowing that this particular comment block has more technical content to come before the code resumes.

Example 4: Infineon AURIX - ATOM Timer Pin Mapping

BLEU-4: H2LooP Spark 0.962 | Claude Opus 4.6 0.121 | Qwen3-Coder 0.267

Prefix:

IfxEgtm_Atom_ToutMap IfxEgtm_ATOM0_5N_TOUT148_P34_3_OUT = {{&MODULE_P34, 3}, IfxPort_OutputIdx_alt9, IfxEgtm_Atom_0, IfxEgtm_Atom_Ch_5, IfxEgtm_ToutSel_24, 148};
IfxEgtm_Atom_ToutMap IfxEgtm_ATOM0_5N_TOUT155_P01_0_OUT = {{&MODULE_P01, 0}, IfxPort_OutputIdx_alt9, IfxEgtm_Atom_0, IfxEgtm_Atom_Ch_5, IfxEgtm_ToutSel_1, 155};

Reference:

IfxEgtm_Atom_ToutMap IfxEgtm_ATOM0_5N_TOUT187_P35_5_OUT = {{&MODULE_P35, 5}, ...IfxEgtm_ToutSel_1, 187};
IfxEgtm_Atom_ToutMap IfxEgtm_ATOM0_5N_TOUT203_P30_13_OUT = {{&MODULE_P30, 13}, ...IfxEgtm_ToutSel_1, 203};
IfxEgtm_Atom_ToutMap IfxEgtm_ATOM0_5N_TOUT251_P13_10_OUT = {{&MODULE_P13, 10}, ...IfxEgtm_ToutSel_1, 251};

H2LooP Spark - exact pin numbers, port mappings, and TOUT selection values:

IfxEgtm_ATOM0_5N_TOUT187_P35_5_OUT  = {{&MODULE_P35, 5},  ...ToutSel_1, 187};  // correct
IfxEgtm_ATOM0_5N_TOUT203_P30_13_OUT = {{&MODULE_P30, 13}, ...ToutSel_1, 203};  // correct
IfxEgtm_ATOM0_5N_TOUT251_P13_10_OUT = {{&MODULE_P13, 10}, ...ToutSel_1, 251};  // correct

Claude Opus 4.6 - plausible structure but wrong pin numbers (TOUT41, P23_0):

IfxEgtm_ATOM0_5_TOUT41_P23_0_OUT = {{&MODULE_P23, 0}, ...ToutSel_1, 41};  // wrong

Qwen3-Coder-30B - plausible but wrong (TOUT160, P01_5):

IfxEgtm_ATOM0_5N_TOUT160_P01_5_OUT = {{&MODULE_P01, 5}, ...ToutSel_1, 160};  // wrong

Why H2LooP Spark wins: AURIX ATOM timer-output pin maps are hardware lookup tables - each line maps a specific timer channel output (TOUT187, TOUT203, TOUT251) to a physical pin (P35_5, P30_13, P13_10) with a specific TOUT selection register value. These mappings are defined by Infineon's silicon design and documented in the TC3xx user manual; they cannot be inferred from patterns alone. H2LooP Spark memorized the exact mapping table from the Infineon iLLD (Low-Level Driver) library during training. Opus and Qwen both generate structurally valid entries with the right macro patterns, but fabricate pin numbers that don't correspond to real hardware. In an embedded systems context, using wrong pin mappings would route timer outputs to incorrect GPIO pins, potentially damaging hardware.

Example 5: Cryptography - RSA Montgomery Exponentiation (wolfSSL)

BLEU-4: H2LooP Spark 0.778 | Claude Opus 4.6 0.024 | Qwen3-Coder 0.177

Prefix:

   XMEMCPY(r, a, sizeof(sp_digit) * 144U);
   for (i--; i>=0; i--) {
   sp_2048_mont_sqr_72(r, r, m, mp);

Reference - conditional multiply, reduce, compare, cleanup, return:

if (((e[0] >> i) & 1) == 1) {
   sp_2048_mont_mul_72(r, r, a, m, mp);
   }
   }
   sp_2048_mont_reduce_72(r, m, mp);
   mp = sp_2048_cmp_72(r, m);
   sp_2048_cond_sub_72(r, r, m, ~(mp >> 31));
   }  }  }
    if (err == MP_OKAY) {
        sp_2048_to_bin_72(r, out);
        *outLen = 256;
    }
    SP_FREE_VAR(d, NULL, DYNAMIC_TYPE_RSA);
    return err;

H2LooP Spark - got the full flow including cleanup and return:

if (((e[0] >> i) & 1) == 1) {
   sp_2048_mont_mul_72(r, r, a, m, mp);
   }  }
   sp_2048_mont_reduce_72(r, m, mp);
   mp = sp_2048_cmp_72(r, m);
   sp_2048_cond_sub_72(r, r, m, ~(mp >> 31));
   }  }  }
    if (err == MP_OKAY) {
        sp_2048_to_bin_72(r, out);
        *outLen = 256;
    }
    SP_FREE_VAR(a, NULL, DYNAMIC_TYPE_RSA);
    ...
    return err;

Claude Opus 4.6 - stopped after the reduce/compare/subtract, missing cleanup:

if (((e[0] >> i) & 1) == 1) {
   sp_2048_mont_mul_72(r, r, a, m, mp);
   }  }
   sp_2048_mont_reduce_72(r, m, mp);
   mp = sp_2048_cmp_72(r, m);
   sp_2048_cond_sub_72(r, r, m, ~(mp >> 31));
   }

Qwen3-Coder-30B - also stopped early, missing cleanup and return:

if (((e[0] >> i) & 1) == 1) {
   sp_2048_mont_mul_72(r, r, a, m, mp);
   }  }
   sp_2048_mont_reduce_72(r, m, mp);
   mp = sp_2048_cmp_72(r, m);
   sp_2048_cond_sub_72(r, r, m, ~(mp >> 31));
   }

Why H2LooP Spark wins: All three models correctly generate the inner loop body (conditional Montgomery multiply, reduce, compare, conditional subtract) - this is a well-known pattern in modular exponentiation. The difference is in what comes after. H2LooP Spark continues through the full function epilogue: closing the nested loops, exporting the result to binary (sp_2048_to_bin_72), setting the output length, freeing memory (SP_FREE_VAR), and returning the error code. It also correctly transitions into the #ifndef WOLFSSL_RSA_PUBLIC_ONLY preprocessor guard. Opus and Qwen both stop at the end of the Montgomery reduction - they recognize the mathematical completeness of the algorithm but don't know the wolfSSL-specific cleanup pattern. H2LooP Spark's advantage is knowing the full function structure from wolfSSL's sp_int.c, not just the crypto algorithm.

Example 6: Linux Kernel - MUSB DMA Controller Init

BLEU-4: H2LooP Spark 0.732 | Claude Opus 4.6 0.391 | Qwen3-Coder 0.174

Prefix:

    controller->channel_count = MUSB_HSDMA_CHANNELS;
    controller->private_data = musb;
    controller->base = base;

Reference:

    controller->controller.channel_alloc = dma_channel_allocate;
    controller->controller.channel_release = dma_channel_release;
    controller->controller.channel_program = dma_channel_program;
    controller->controller.channel_abort = dma_channel_abort;
    return controller;
}

struct dma_controller *
musbhs_dma_controller_create(struct musb *musb, void __iomem *base)
{
    struct musb_dma_controller *controller;
    struct device *dev = musb->controller;
    struct platform_device *pdev = to_platform_device(dev)

H2LooP Spark - all 4 callback assignments correct, plus continued into next function:

    controller->controller.channel_alloc = dma_channel_allocate;
    controller->controller.channel_release = dma_channel_release;
    controller->controller.channel_program = dma_channel_program;
    controller->controller.channel_abort = dma_channel_abort;
    controller->controller.channel_status = dma_channel_status;
    controller->controller.start = dma_controller_start;
    controller->controller.stop = dma_controller_stop;
    return controller;
}

struct dma_controller *
musbhs_dma_controller_create(struct m

Claude Opus 4.6 - got the 4 callbacks but stopped short:

    controller->controller.channel_alloc = dma_channel_allocate;
    controller->controller.channel_release = dma_channel_release;
    controller->controller.channel_program = dma_channel_program;
    controller-

Qwen3-Coder-30B - skipped the callbacks entirely:

    return controller;
}

struct dma_controller *
musbhs_dma_controller_create(struct musb *musb, void __iomem *base)
{
    struct musb_dma_controller *controller;
    int i;
    controller = dma_controller_allo

Why H2LooP Spark wins: Linux kernel DMA controller initialization follows a specific pattern: after setting up hardware parameters (channel_count, base address), the driver populates a vtable of callback function pointers. H2LooP Spark correctly generates all four required callbacks (channel_alloc, channel_release, channel_program, channel_abort) and even adds two more (channel_status, start/stop) before returning and continuing into the next function. Opus starts correctly with the same 4 callbacks but runs out before completing - it understands the pattern but doesn't generate enough. Qwen makes a different structural error: it skips the callback assignments entirely and jumps to return controller, then starts the next function. H2LooP Spark's training on Linux kernel source gives it familiarity with the MUSB DMA subsystem's specific initialization sequence.

Example 7: Register Defines - PCIe DMA Register Definitions

BLEU-4: H2LooP Spark 1.000 | Claude Opus 4.6 0.432 | Qwen3-Coder 0.390

Prefix:

#define PCIE1_USP_DMACAP_DMA_WRITE_INT_MASK_OFF /*lint --e(923, 9078)*/ (*(volatile Ifx_PCIE_USP_DMACAP_DMA_WRITE_INT_MASK_OFF*)0xF46A7054u)
#define PCIE1_USP_DMA_WRITE_INT_MASK_OFF (PCIE1_USP_DMACAP_DMA_WRITE_INT_MASK_OFF)

H2LooP Spark - perfect: correct next register name (INT_CLEAR), correct offset (0x7058), correct alias:

/** \brief 7058, DMA Write Interrupt Clear Register */
#define PCIE1_USP_DMACAP_DMA_WRITE_INT_CLEAR_OFF /*lint --e(923, 9078)*/ (*(volatile Ifx_PCIE_USP_DMACAP_DMA_WRITE_INT_CLEAR_OFF*)0xF46A7058u)
#define PCIE1_USP_DMA_WRITE_INT_CLEAR_OFF (PCIE1_USP_DMACAP_DMA_WRITE_INT_CLEAR_OFF)
/** \brief 705C, DMA Write Error Status Register */
#define PCIE1_USP_DMACAP_DMA_WRITE_ERR_STATUS_OFF /*lint --e(923, 9078)*/ (*(volatile I

Claude Opus 4.6 - wrong offset (0x705C instead of 0x7058):

/** \brief 705C, DMA Write Interrupt Clear Register */
#define PCIE1_USP_DMACAP_DMA_WRITE_INT_CLEAR_OFF /*lint --e(923, 9078)*/ (*(volatile Ifx_PCIE_USP_DMACAP_DMA_WRITE_INT_CLEAR_OFF*)0xF46A705Cu)

Qwen3-Coder-30B - wrong register name (DMA_READ instead of DMA_WRITE):

/** \brief 7058, DMA Read Interrupt Status Register */
#define PCIE1_USP_DMACAP_DMA_READ_INT_STATUS_OFF ...

Why H2LooP Spark wins: PCIe DMA register maps follow a strict sequential layout defined by the hardware specification - after the INT_MASK register at offset 0x7054, the next register must be INT_CLEAR at offset 0x7058, followed by ERR_STATUS at 0x705C. H2LooP Spark gets all three right: the register name, the memory-mapped address (base 0xF46A0000 + offset), the type cast, and the Doxygen comment. Opus gets the register name right but assigns offset 0x705C (skipping one register), breaking the sequential layout. Qwen gets the offset right (0x7058) but generates DMA_READ_INT_STATUS instead of DMA_WRITE_INT_CLEAR - it confused the read and write channel register blocks. These auto-generated register definition headers are highly repetitive but require exact knowledge of the register map ordering; one wrong offset or name renders the macro useless for hardware access.

Example 8: General - High-Precision Trigonometric Lookup Table

BLEU-4: H2LooP Spark 1.000 | Claude Opus 4.6 0.000 | Qwen3-Coder 0.000

Prefix:

    {_DATAF(0.96448856592178345000),  _DATAF(-0.26412457227706909000)},
    {_DATAF(0.96438723802566528000),  _DATAF(-0.26449441909790039000)},
    {_DATAF(0.96428573131561279000),  _DATAF(-0.26486423611640930000)},
    {_DATAF(0.96418404579162598000),  _DATAF(-0.26523402333259583000)},

H2LooP Spark - every digit correct across 7 rows of 20-digit precision values:

    {_DATAF(0.96408230066299438000),  _DATAF(-0.26560378074645996000)},
    {_DATAF(0.96398037672042847000),  _DATAF(-0.26597347855567932000)},
    {_DATAF(0.96387827396392822000),  _DATAF(-0.26634314656257629000)},
    {_DATAF(0.96377605199813843000),  _DATAF(-0.26671275496482849000)},
    {_DATAF(0.96367371082305908000),  _DATAF(-0.26708233356475830000)},
    {_DATAF(0.96357119083404541000),  _DATAF(-0.26745188236236572000)},
    {_DATAF(0.96346855163574219000),  _DATAF(-0.26782140135765076000

Claude Opus 4.6 - first row correct, then digits drift (off by 10th+ decimal):

    {_DATAF(0.96408230066299438000),  _DATAF(-0.26560378074645996000)},
    {_DATAF(0.96398037672042847000),  _DATAF(-0.26597350835800171000)},  // wrong
    {_DATAF(0.96387833356857300000),  _DATAF(-0.266343206               // wrong

Qwen3-Coder-30B - first value already wrong (0.96408218... vs 0.96408230...):

    {_DATAF(0.96408218145020020000),  _DATAF(-0.26560378074634033000)},  // wrong
    {_DATAF(0.96398013829123047000),  _DATAF(-0.26597350835740210000)},  // wrong

Why H2LooP Spark wins: This is a precomputed trigonometric lookup table with 20-digit floating-point precision - each value is a specific cosine/sine pair at a fixed angular increment. These values cannot be computed or interpolated from the pattern; they are exact constants baked into the Infineon math library. H2LooP Spark reproduces all 7 rows with every digit correct because it memorized this specific table from training data. Opus gets the first row right but drifts by the second row (0.26597350... vs 0.26597347...), and its third row is significantly wrong. Qwen is already wrong on the first value (0.96408218... vs 0.96408230...). This is the clearest example of domain memorization advantage: the values are arbitrary-looking constants that only a model trained on this exact source can reproduce, and approximate values are useless for numerical correctness.

Limitations

This is an early checkpoint of an ongoing training run - performance will continue to improve.
On categories with sparser training data (wireless/BLE, Zephyr RTOS, crypto) and on general development, frontier models like Claude Opus 4.6 still hold advantages.
The model is optimized for code completion, not instruction following. For chat/instruction use cases, further fine-tuning would be needed.
Evaluation uses OLMo's native tokenizer for token accuracy - cross-model comparisons carry a small tokenizer bias.

License

H2LooP Spark is released under the H2LooP Research Only License (ROL).

Permitted uses:

Academic and non-commercial research
Personal experimentation and evaluation
Publication of research results derived from use of this model

Prohibited uses:

Any commercial use, including but not limited to: integrating the model into commercial products or services, using model outputs to generate revenue, or using the model in a production environment
Redistribution or sublicensing of model weights, in whole or in part
Training or fine-tuning derivative models intended for commercial deployment
Use in applications that could cause harm, including but not limited to weapons, surveillance, or autonomous systems without human oversight

Attribution: Any publication or public work using H2LooP Spark must cite this model (see citation below).

By downloading or using this model, you agree to the terms above. For commercial licensing inquiries, contact H2LooP directly.

Citation

@misc{singh2026h2loopspark,
  title={H2LooP Spark Preview: Continual Pretraining of Large Language Models for Low-Level Embedded Systems Code},
  author={Amit Singh and Vedant Nipane and Pulkit Agrawal and Jatin Kishnani and Sairanjan Mishra},
  year={2026},
  eprint={2603.11139},
  archivePrefix={arXiv},
  primaryClass={cs.LG},
  url={https://arxiv.org/abs/2603.11139}
}

About H2LooP

H2LooP builds specialized AI for embedded systems engineering. Spark is our first open-source release - demonstrating that focused continual pre-training on curated domain data can push a 7B model past frontier-class models on domain-specific tasks.

Disclaimer

Opus 4.6 and Qwen Coder 30B A3B are models developed by Anthropic and Alibaba Group (Qwen Team), respectively. We do not claim ownership, authorship, or affiliation with these models or their respective organizations. These models were used solely for research, benchmarking, and comparative evaluation purposes. All rights, trademarks, and intellectual property related to these models remain with their original creators. Our work involves independent analysis and experimental comparison and should not be interpreted as endorsement, partnership, or official collaboration with the model providers.

Downloads last month: -

Safetensors

Model size

7B params

Tensor type

BF16

Papers for h2loop-ai/spark-cpt-base-ckpt

H2LooP Spark Preview: Continual Pretraining of Large Language Models for Low-Level Embedded Systems Code

Paper • 2603.11139 • Published 26 days ago

SpecMap: Hierarchical LLM Agent for Datasheet-to-Code Traceability Link Recovery in Systems Engineering

Paper • 2601.11688 • Published Jan 16
