PyTorch Model Comparison: From Custom CNNs to Advanced Transfer Learning

---

Overview

This project compares three computer vision approaches in PyTorch on a vehicle classification task:

1. Custom CNN (trained from scratch)
2. Vision Transformer (DeiT-Tiny)
3. Xception with two-phase transfer learning

The goal is to answer a practical question:

On small or moderately sized datasets, should you train from scratch or use transfer learning?

The results clearly show that transfer learning dramatically improves generalization and reliability, especially when data and compute are limited.

---

Architectures Compared

Custom CNN (From Scratch)

A traditional convolutional network built manually with Conv → ReLU → Pooling blocks and fully connected layers.

Philosophy: Full architectural control, no pre-training.

Minimal structure:

class CustomCNN(nn.Module):
    def __init__(self, num_classes):
        super().__init__()
        self.features = nn.Sequential(
            nn.Conv2d(3, 32, 3, padding=1),
            nn.ReLU(),
            nn.MaxPool2d(2),
            nn.Conv2d(32, 64, 3, padding=1),
            nn.ReLU(),
            nn.MaxPool2d(2)
        )
        self.classifier = nn.Sequential(
            nn.Linear(64 * 56 * 56, 256),
            nn.ReLU(),
            nn.Dropout(0.5),
            nn.Linear(256, num_classes)
        )

Reality on small datasets:

• Slower convergence
• Higher variance
• Larger generalization gap

---

Vision Transformer (DeiT-Tiny)

Using Hugging Face's pre-trained Vision Transformer:

model = AutoModelForImageClassification.from_pretrained(
    "facebook/deit-tiny-patch16-224",
    num_labels=num_classes,
    ignore_mismatched_sizes=True
)

Trained with the Hugging Face Trainer API.

Advantages:

• Stable convergence
• Lightweight
• Easy deployment
• Good performance-to-efficiency ratio

---

Xception (Two-Phase Transfer Learning)

Implemented using timm.

Phase 1 - Train Classifier Head Only

model = timm.create_model("xception", pretrained=True)

for param in model.parameters():
    param.requires_grad = False

model.fc = nn.Sequential(
    nn.Linear(in_features, 512),
    nn.ReLU(),
    nn.Dropout(0.5),
    nn.Linear(512, num_classes)
)

Phase 2 - Fine-Tune Selected Layers

for name, param in model.named_parameters():
    if "block14" in name or "fc" in name:
        param.requires_grad = True

Lower learning rate used during fine-tuning.

Result:

• Smoothest training curves
• Lowest validation loss
• Highest test accuracy
• Strongest performance on unseen internet images

---

Comparative Results

Model	Validation Performance	Generalization	Stability
Custom CNN	High variance	Weak	Unstable
DeiT-Tiny	Strong	Good	Stable
Xception	Best	Excellent	Very Stable

Key Insight

High validation accuracy does NOT guarantee real-world reliability.

Custom CNN achieved strong validation scores (~87%) but struggled more on distribution shifts.

Xception consistently generalized better.

---

Experimental Visualizations

Dataset Distribution Across All Three Models:

---

Xception Model:

Custom CNN Model:

---

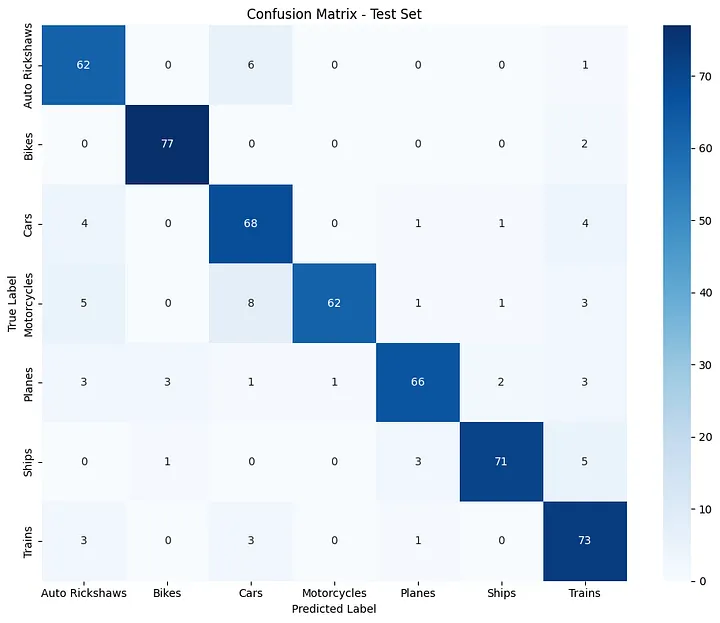

Confusion Matrix between both Models:

Custom CNN	Xception

---

Example Test Results (Custom CNN)

Test Accuracy: 87.89%

Macro Avg:
Precision: 0.8852
Recall:    0.8794
F1-Score:  0.8789

Despite solid metrics, performance dropped more noticeably on unseen real-world images compared to Xception.

---

Deployment

Run Locally

pip install -r requirements.txt
python app.py

Access at:

http://localhost:7860

---

When to Use Each Approach

Use Custom CNN if:

• Domain is highly specialized
• Pre-trained features don’t apply
• You need full architectural control

Use Transfer Learning (e.g. DeiT or Xception) if:

• You want fast experimentation
• Efficiency matters
• You prefer high-level APIs
• You want best accuracy
• You care about generalization
• You need production-grade reliability

---

Final Conclusion

On small or moderately sized datasets:

Transfer learning isn’t an optimization - it’s a necessity.

Training from scratch forces the model to learn both general visual features and task-specific knowledge simultaneously.

Pre-trained models already understand edges, textures, and spatial structure. Your dataset only needs to teach classification boundaries.

For most real-world tasks:

• Start with transfer learning
• Fine-tune carefully
• Only train from scratch if absolutely necessary

---

Results
