Sports Ball Classification using InceptionV3

A deep learning image classification model that identifies different types of sports balls using transfer learning with InceptionV3. The model achieves high accuracy through careful data preprocessing, augmentation, and a two-stage training strategy.

Overview

This project demonstrates a production-ready approach to image classification, focusing on data quality, preprocessing pipelines, and comprehensive evaluation. The model can classify various sports balls including basketballs, soccer balls, tennis balls, baseballs, and more.

Key Features

• Transfer learning with InceptionV3 pre-trained on ImageNet
• Comprehensive data preprocessing and quality analysis
• Automated data balancing through augmentation
• Two-stage training: feature extraction followed by fine-tuning
• FastAPI deployment for easy inference
• Docker support for containerized deployment
• Rigorous evaluation with multiple metrics (precision, recall, F1-score, ROC curves)

Project Structure

InceptionV3_Sports_Balls_Classification/
├── app/
│   ├── main.py              # FastAPI application
│   └── model.py             # Model loading and prediction logic
├── Notebook and Py File/
│   ├── Sports_Balls_Classification.ipynb
├── saved_model/
│   └── Sports_Balls_Classification.h5
├── Results/
│   └── InceptionV3_Sports_Balls_Classification.mp4
├── requirements.txt
├── Dockerfile
└── README.md

Installation

Local Setup

1. Clone the repository:

git clone https://github.com/yourusername/sports-ball-classifier.git
cd sports-ball-classifier

2. Install dependencies:

pip install -r requirements.txt

Docker Setup

Build and run using Docker:

docker build -t sports-ball-classifier .
docker run -p 8000:8000 sports-ball-classifier

Usage

Running the API

Start the FastAPI server:

uvicorn app.main:app --host 0.0.0.0 --port 8000

The API will be available at http://localhost:8000

Making Predictions

Send a POST request to the /predict endpoint:

import requests

url = "http://localhost:8000/predict"
files = {"file": open("path/to/sports_ball_image.jpg", "rb")}
response = requests.post(url, files=files)
print(response.json())

Response format:

{
  "predicted_label": "basketball",
  "confidence": 0.985,
  "probabilities": {
    "basketball": 0.985,
    "soccer_ball": 0.012,
    "tennis_ball": 0.003
  }
}

Using the Notebook

Open and run the Jupyter notebook for training and evaluation:

jupyter notebook "Notebook / Sports_Balls_Classification.ipynb"

Model Architecture

The model uses InceptionV3 as a feature extractor with custom classification layers:

• Base: InceptionV3 (pre-trained on ImageNet, frozen initially)
• Global Average Pooling 2D
• Dense layer (512 units, ReLU activation)
• Dropout (0.5)
• Output layer (softmax activation)

x = GlobalAveragePooling2D()(inception.output)
x = Dense(512, activation='relu')(x)
x = Dropout(0.5)(x)
prediction = Dense(len(le.classes_), activation='softmax')(x)
model = Model(inputs=inception.input, outputs=prediction)
model.summary()

Training Strategy

Stage 1: Feature Extraction (5 epochs)

• Freeze InceptionV3 base layers
• Train only top classification layers
• Learn task-specific patterns

Stage 2: Fine-Tuning (10 epochs)

• Unfreeze last 30 layers of InceptionV3
• Train entire model with lower learning rate
• Adapt deep features to sports ball classification

Data Preprocessing

The preprocessing pipeline includes:

1. Corruption and quality checks
2. Brightness and contrast analysis
3. Class balancing through augmentation
4. Normalization and resizing
5. TensorFlow data pipeline optimization (prefetching, caching, parallel processing)

Evaluation Metrics

The model is evaluated using:

• Accuracy
• Precision, Recall, F1-Score (per class and macro-averaged)

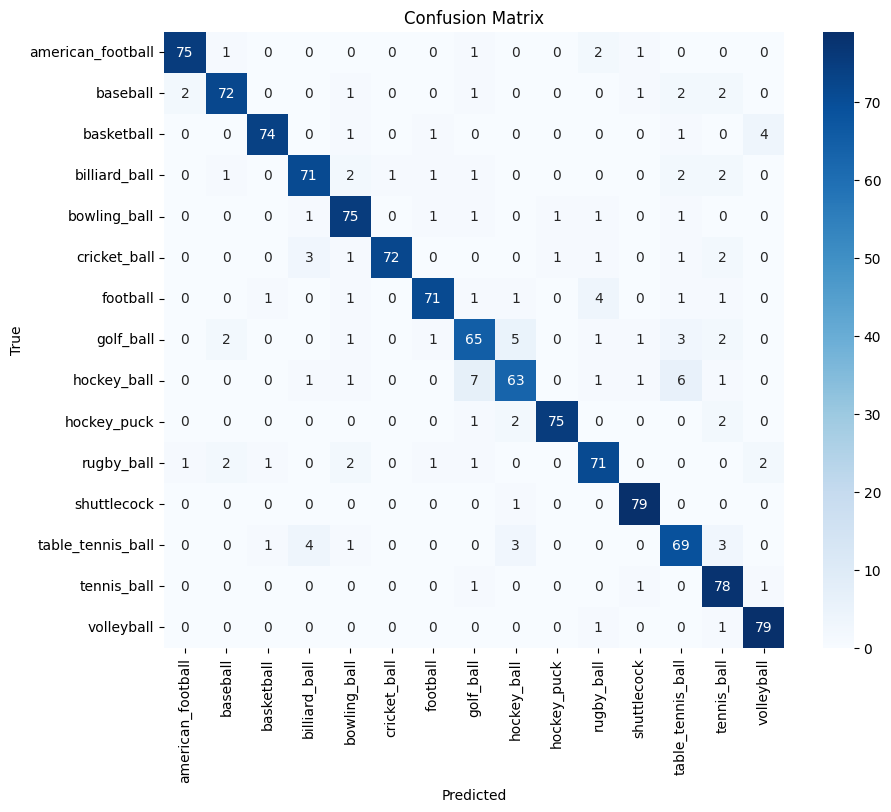

• Confusion Matrix

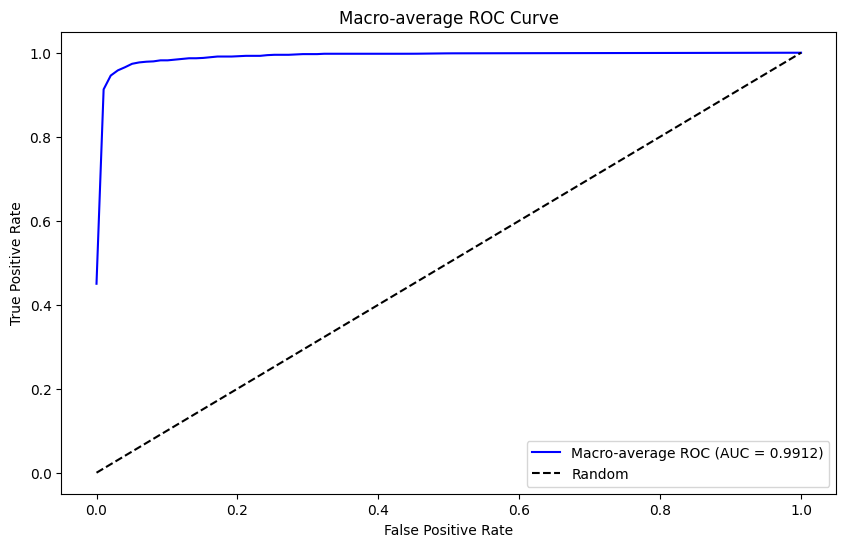

• ROC Curves (one-vs-rest)
• Classification Report

Requirements

See requirements.txt for complete dependencies.

Performance

The model achieves strong performance across all classes after addressing:

• Class imbalance through augmentation
• Image quality issues (dark, bright, low contrast images)
• Proper train/validation/test splits (80/10/10)

Detailed metrics available in the notebook evaluation section.

Check the Results

License

This project is licensed under the MIT License.
